Dashboard Tour¶
The Streamlit dashboard runs the full engine on startup and surfaces results across 43 purpose-built pages (45 page files on disk — the two extras, Start here and Today, are navigation surfaces documented separately). The sidebar Audience selector hides operational pages outside your persona's primary workflow. Every page also mounts the GenAI Assistant in the sidebar (PR-K) — backend selectable via AML_AI_BACKEND, audit-logged per spec. On every page the page-level AI explanation is now a collapsible block (collapsed by default) so the primary content leads — KPIs sit above the fold on mobile rather than below an explainer.
The sidebar carries two external links — Research & whitepapers and How-to recipes — pointing at the MkDocs docs site at tomqwu.github.io/aml_open_framework_docs/ (AML_DOCS_URL env override). Round 32 (2026-05-24) retired the in-app Knowledge category — the 10 pages 33–42 ported from the old GH-Pages site in PR-U2/U3 — once the docs site shipped in Round 31. Knowledge content lives in one canonical place now; the dashboard owns the operational/run-coupled surfaces only.
pip install -e ".[dev,dashboard]"
aml dashboard examples/community_bank/aml.yaml
# Opens at http://localhost:8501
For multi-tenant deployments showing more than one program in the same dashboard process, see the Tenant selector at the top of the sidebar (configured via dashboard_tenants.yaml).
Navigation Surfaces¶

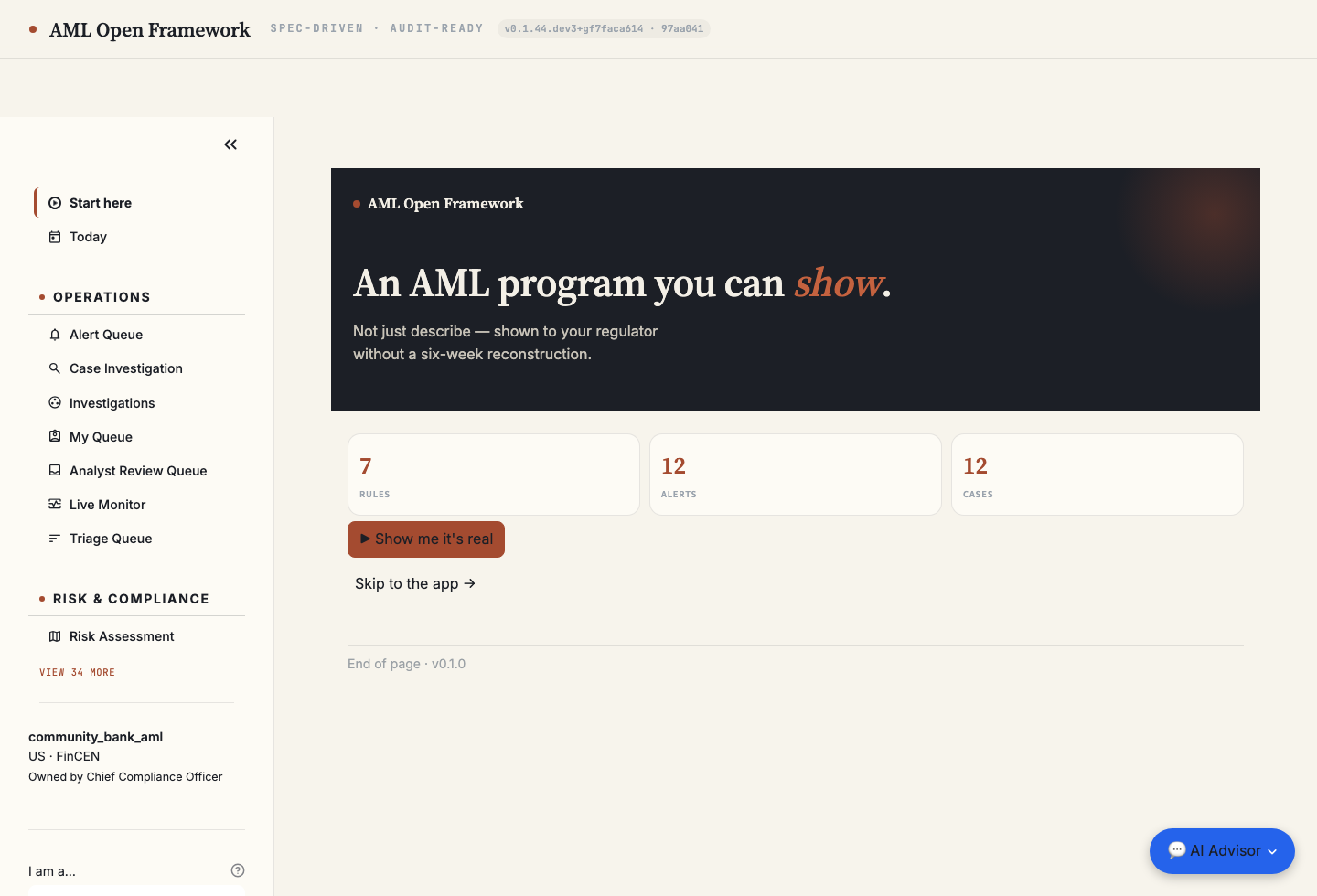

Start here¶
The default landing page (first-run Golden Thread). One sentence establishes what the framework does; a "▶ Show me it's real" button runs a live 4-beat walkthrough — alert → case → audit → doors — driven by the planted C0001 structuring case in the community_bank spec. Replaces the legacy Welcome cold-open. Universally routed so it is always reachable regardless of audience filter; 0_Start.py is TOUR_EXEMPT (navigation surface, not an operational page).
Today¶
The personalised daily checklist landing surface. A regulatory-deadline alert banner surfaces the next forward deadlines (NPRM comment windows, AUSTRAC/AMLA dates) with live days-remaining and urgency bands, sourced from the bundled regulatory calendar. Universally routed; 0_Today.py is TOUR_EXEMPT (navigation surface, not an operational page).
Operational Pages¶

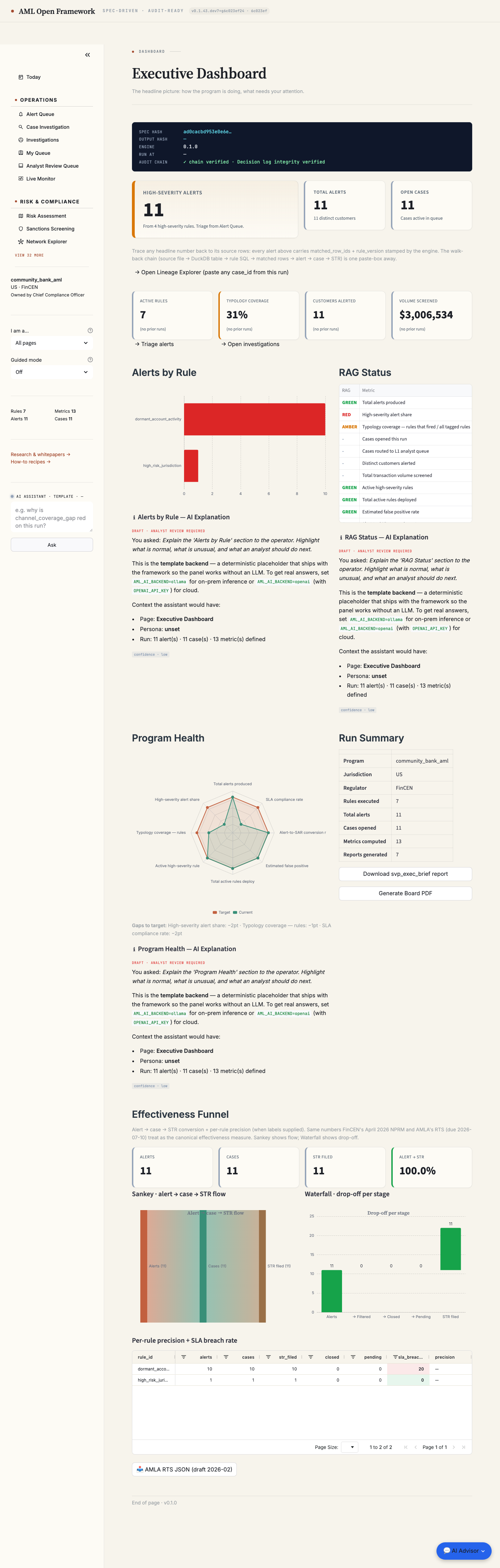

Executive Dashboard¶
Program-level KPIs, alert-by-rule breakdown with severity coloring, RAG status grid for all metrics, and a program health radar chart. Audience filtering switches between SVP, VP, Director, Manager, PM, Developer, and Business views.

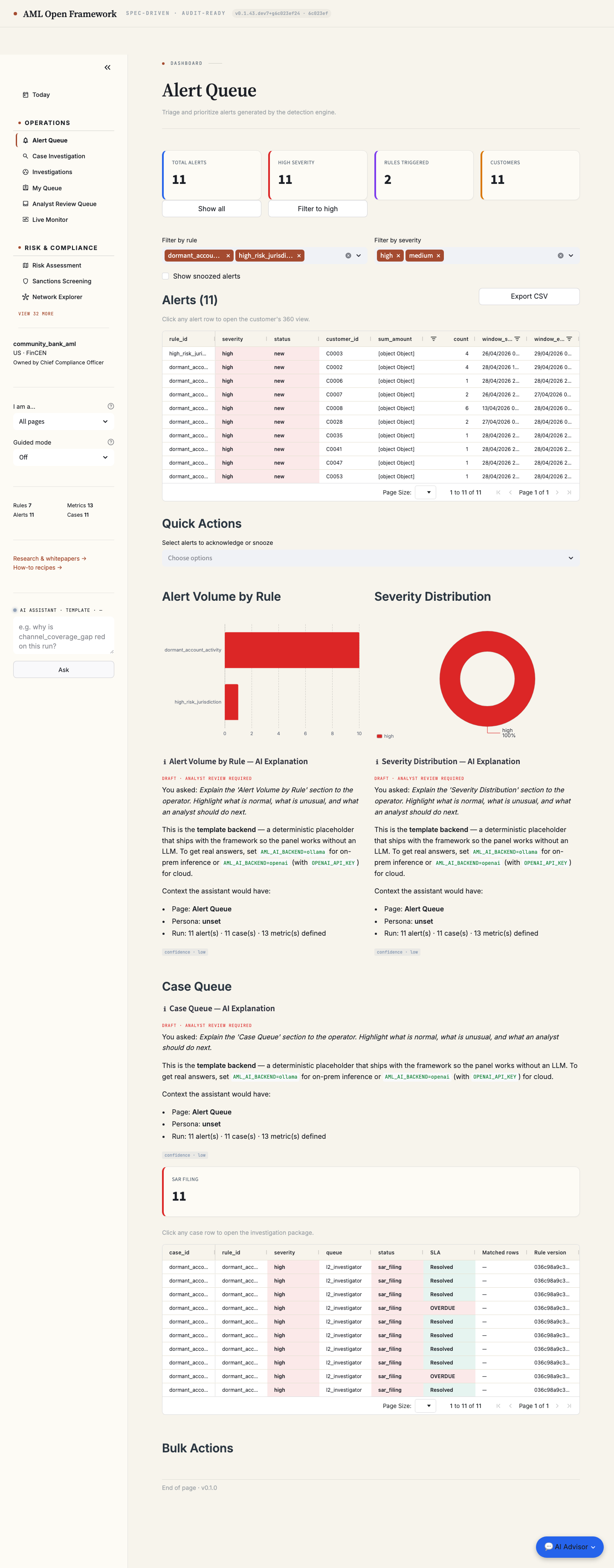

Alert Queue¶
Filterable, sortable alert triage view for L1 analysts. Filter by rule or severity, view aggregated amounts and time windows, and drill into individual alerts. Charts show alert volume by rule and severity distribution.

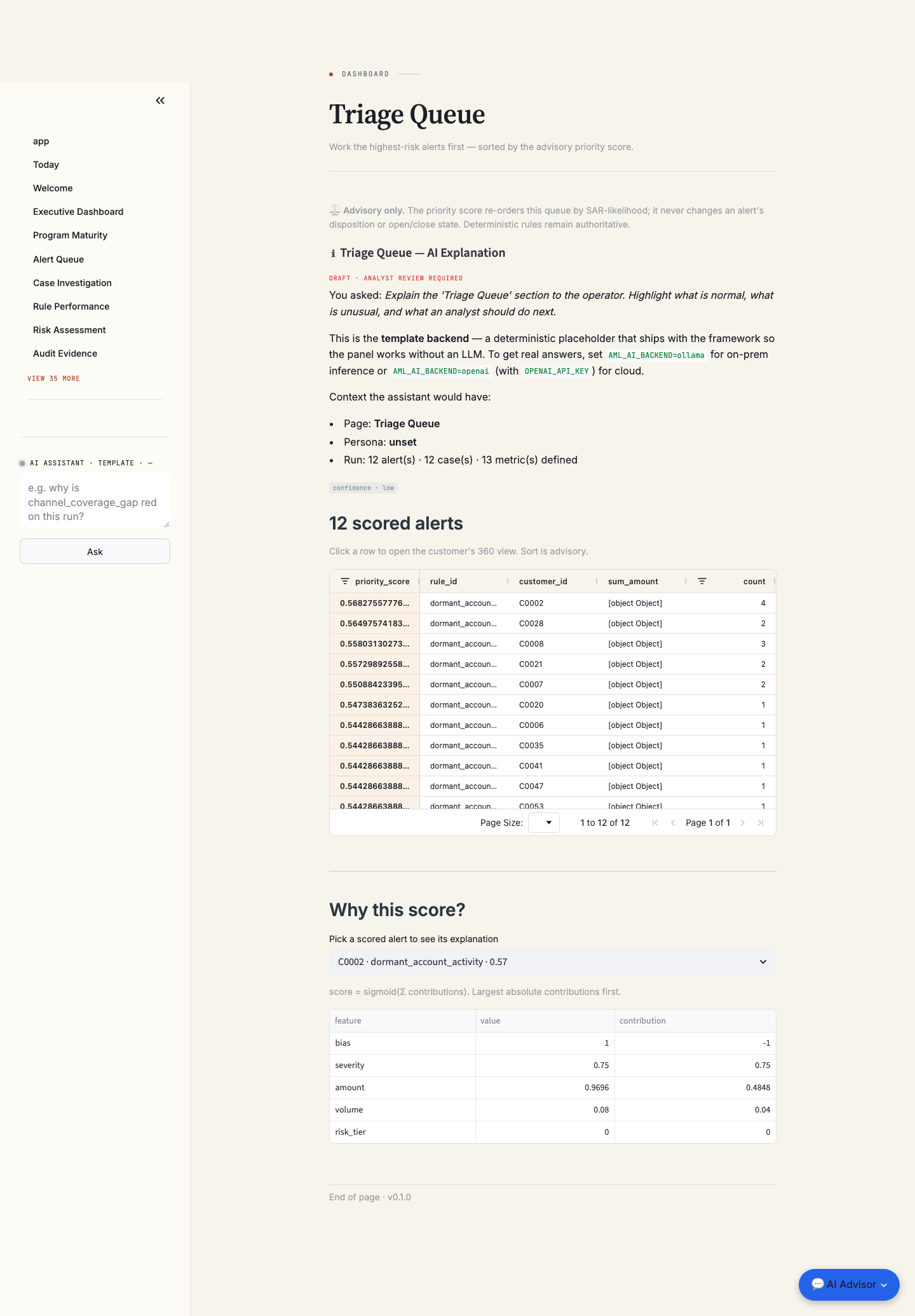

Triage Queue¶
Ranks scored alerts by the advisory N1 priority_score (highest first) so an investigator works the highest-SAR-likelihood alerts before the long tail. Each row's score is colour-graded (red = urgent); a "Why this score?" panel renders the per-alert priority_explanation — the bias baseline plus each feature's contribution, largest first, with score = sigmoid(Σ contributions). Advisory only: the sort never changes an alert's disposition or open/close state; the deterministic rules stay authoritative. When a program.risk_segmentation block is enabled (#495), alerts on low-risk customers scoring below a segment threshold are flagged suppression.applied and visually de-emphasized here — still present and openable, with a per-row override so an investigator can reverse the advisory de-prioritization. Routed universally so every investigator persona can reach it. Enabled by a program.prioritization block in the spec.

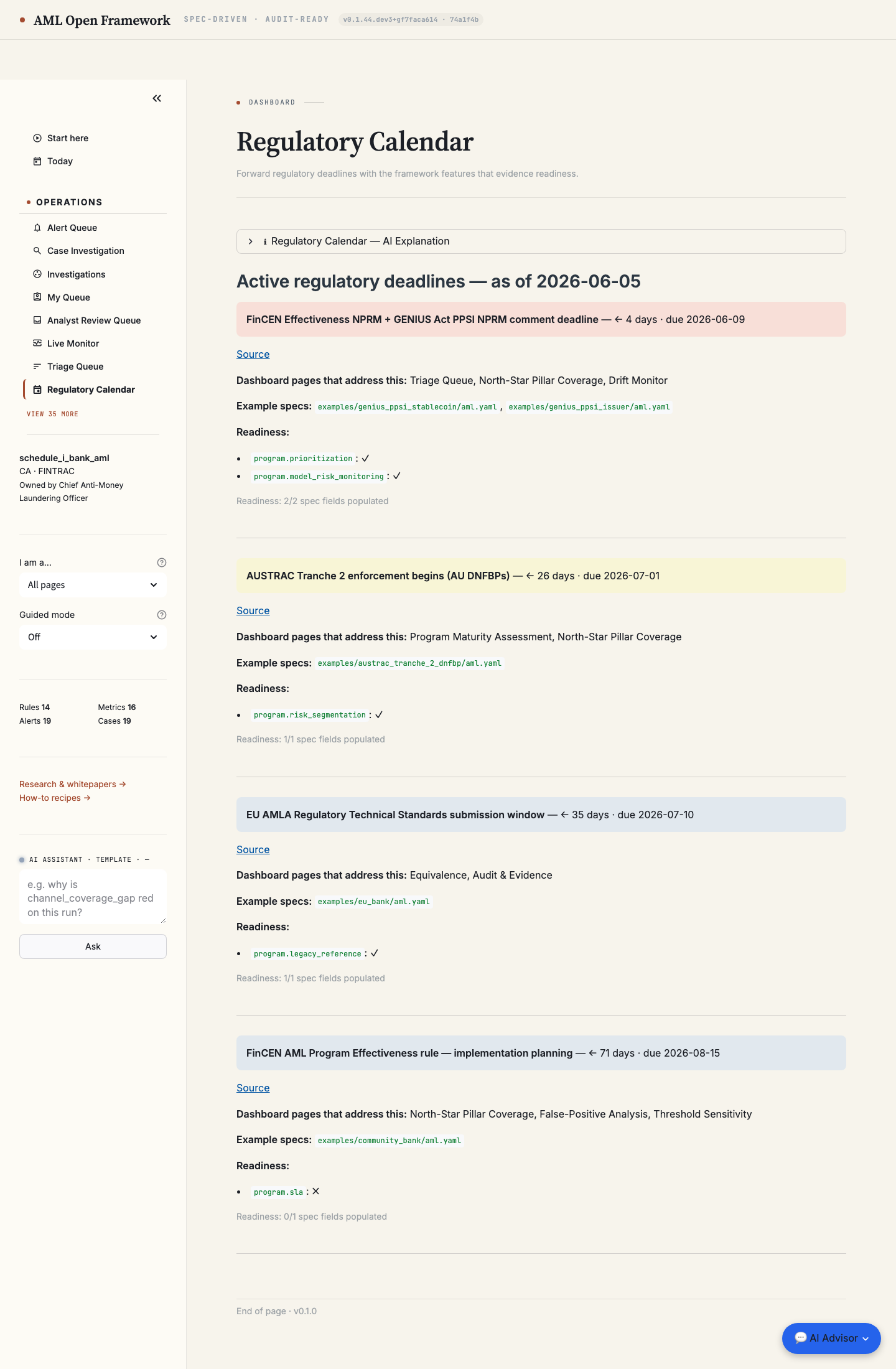

Regulatory Calendar¶
Forward regulatory deadline calendar (#511). Loads the packaged regulatory_calendar.yaml and computes live days-remaining against date.today(), listing each upcoming deadline most-urgent-first in a band-colored block (red ≤7 days, amber ≤30, blue beyond) with a source link. Each deadline carries its evidence response — the dashboard pages and example specs in this framework that address the obligation — plus a per-deadline readiness indicator: for every referenced spec_field (a dotted path like program.prioritization) the page checks whether it's populated in the loaded spec and shows ✓/✗, with a "Readiness: N/M spec fields populated" roll-up. Read-only synthesis (no engine call, no spec write); complements the Today banner (#510), which surfaces only the nearest deadlines. Routed universally so every persona — MLRO, CCO, director, examiner, analyst — sees what's coming.

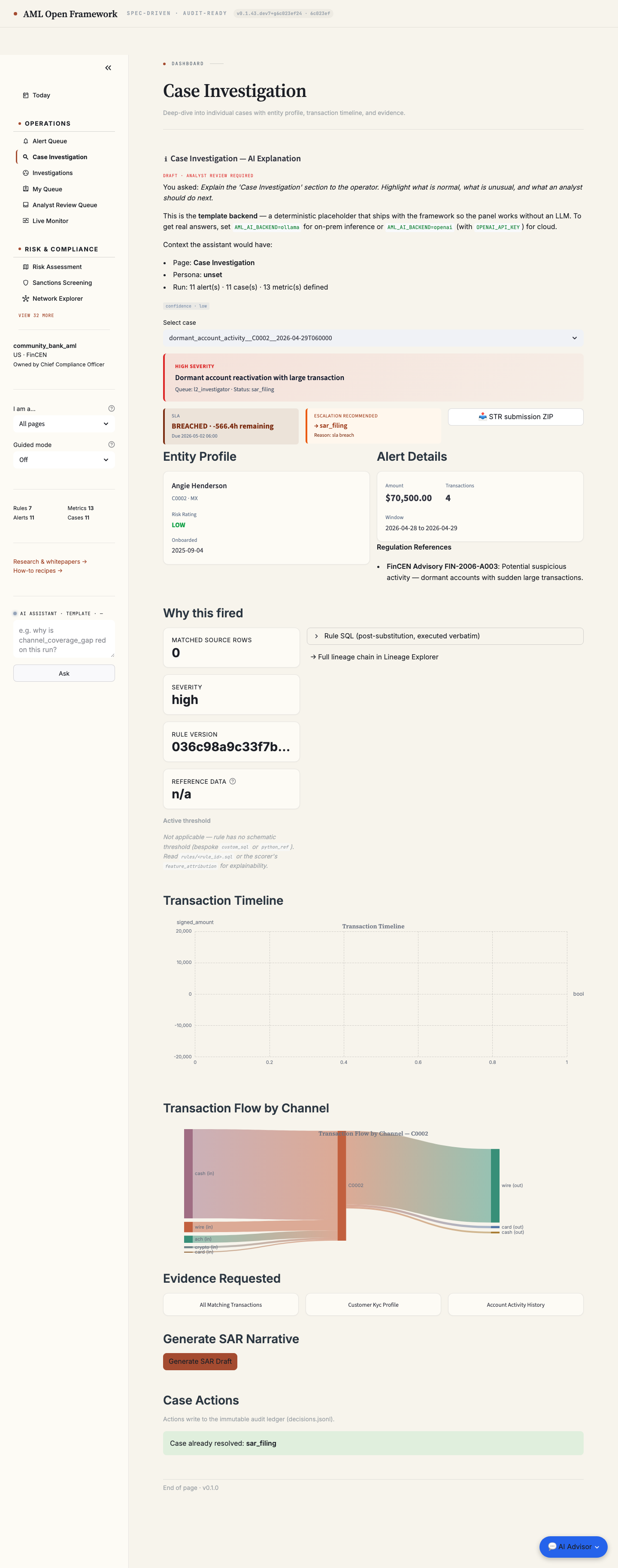

Case Investigation¶
Per-case investigation workspace with entity profile (customer details, risk rating, country), alert details (regulation citations, evidence requested), transaction timeline with alert window highlighting, Sankey flow diagram showing channel-level fund movement, and evidence panel. A governed Case Copilot sidebar panel (#499) offers case-scoped GenAI DRAFTS — summarize / identify typology / draft STR-SAR narrative / counterparty network / risk & recommended action (plus freeform) — every reply is a human-reviewed DRAFT (never an auto-decision), audited to ai_interactions.jsonl as ai_case_copilot_action with the backend/model + confidence.

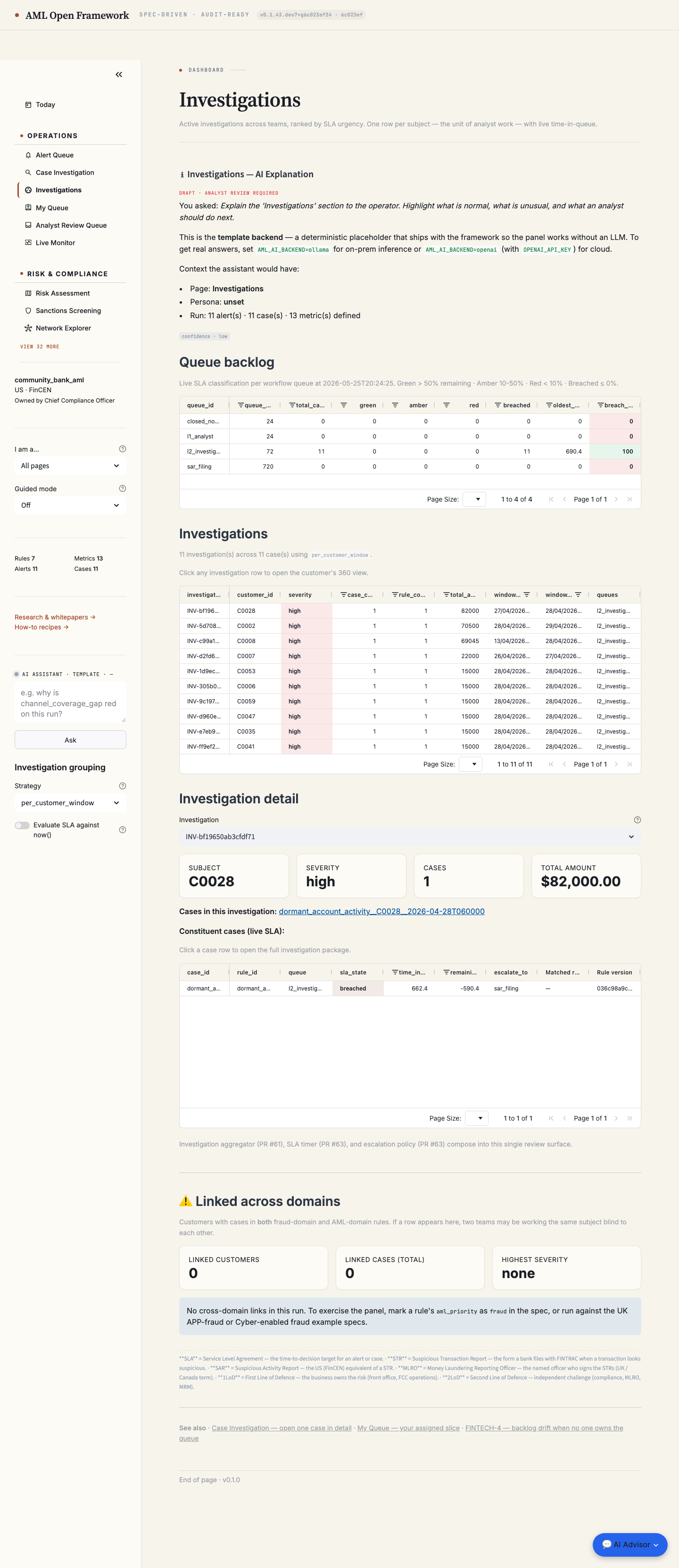

Investigations (Round-6)¶
Aggregates per-alert cases into investigation units that FinCEN's effectiveness rule and FCA's Mar 2026 Dear CEO letter both treat as canonical. Three sections: - Queue backlog table with green/amber/red/breached counts per workflow queue - Investigations list sorted by severity → total amount - Drill-down with per-constituent-case live SLA state + escalation recommendation
Sidebar exposes aggregation strategy (per_customer_window / per_customer_per_run / per_case) and an "evaluate SLA against now()" toggle for live-ops vs backtest view.

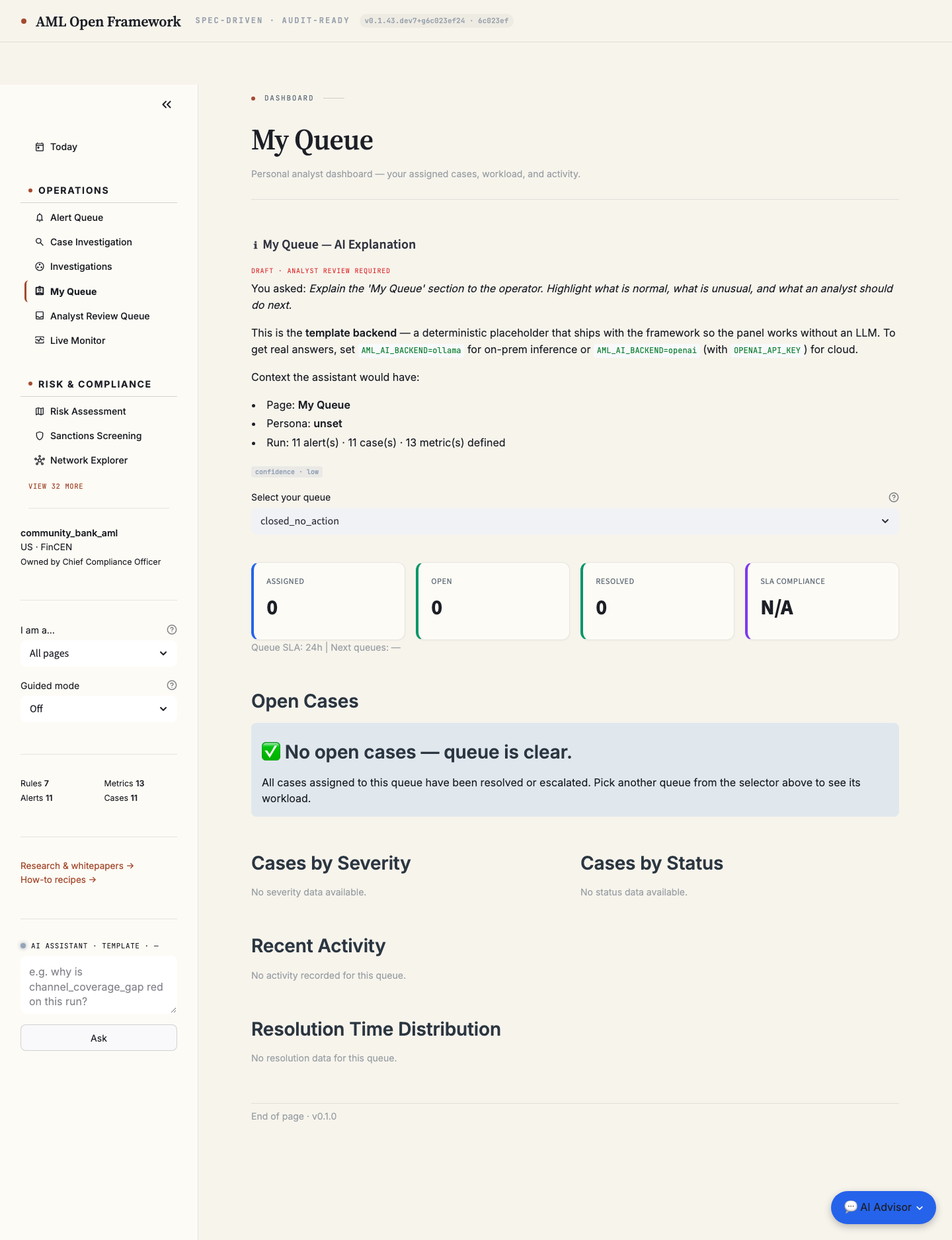

My Queue (Analyst Dashboard)¶
Personal analyst dashboard showing assigned cases, open/resolved counts, SLA compliance percentage, and resolution time distribution. Select your queue to see cases by severity, recent activity log, and workload charts.

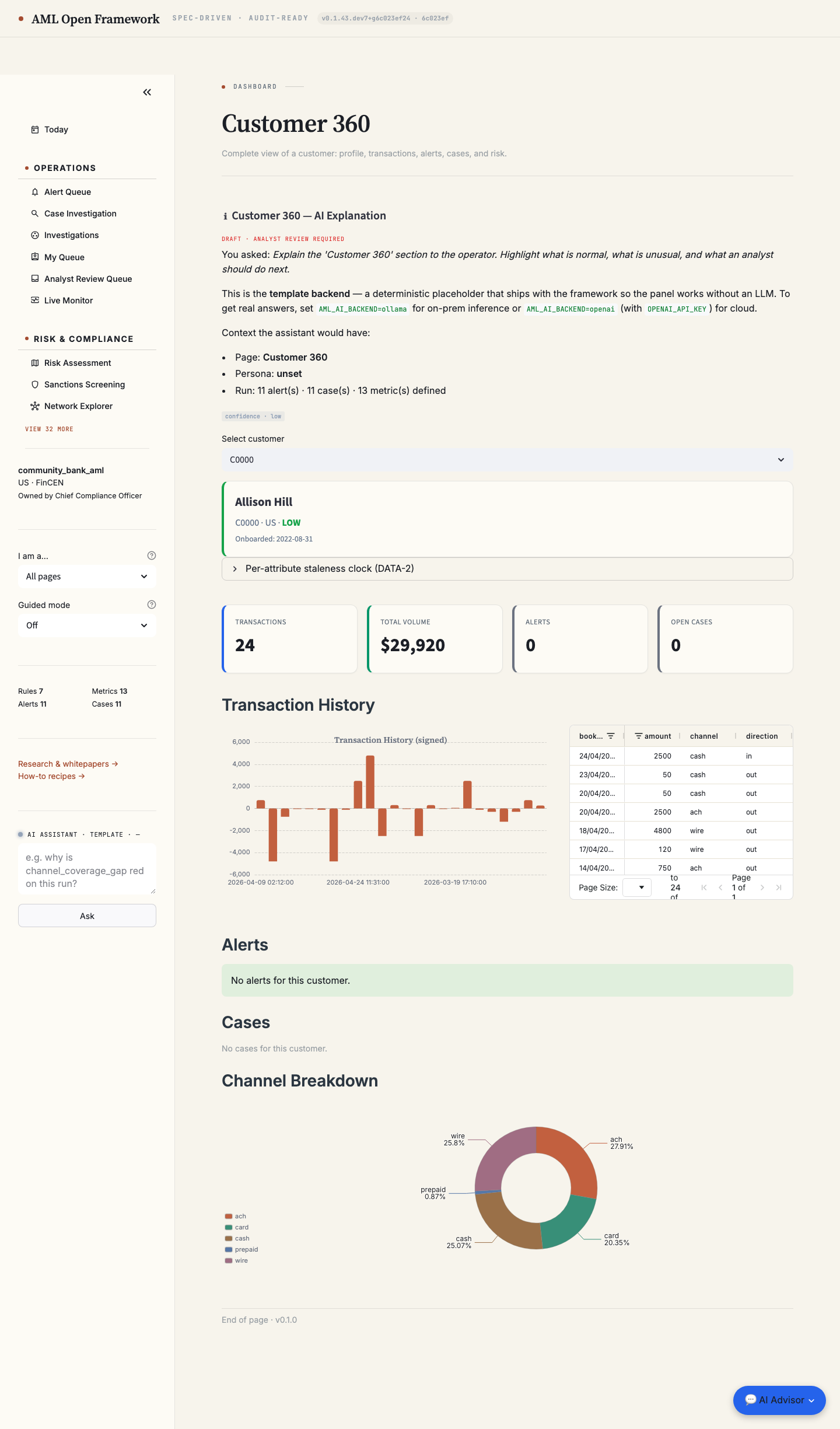

Customer 360¶
Complete single-customer view: profile card with risk rating, transaction history chart + table, alerts triggered, open cases, and channel breakdown. Used by analysts for investigation prep.

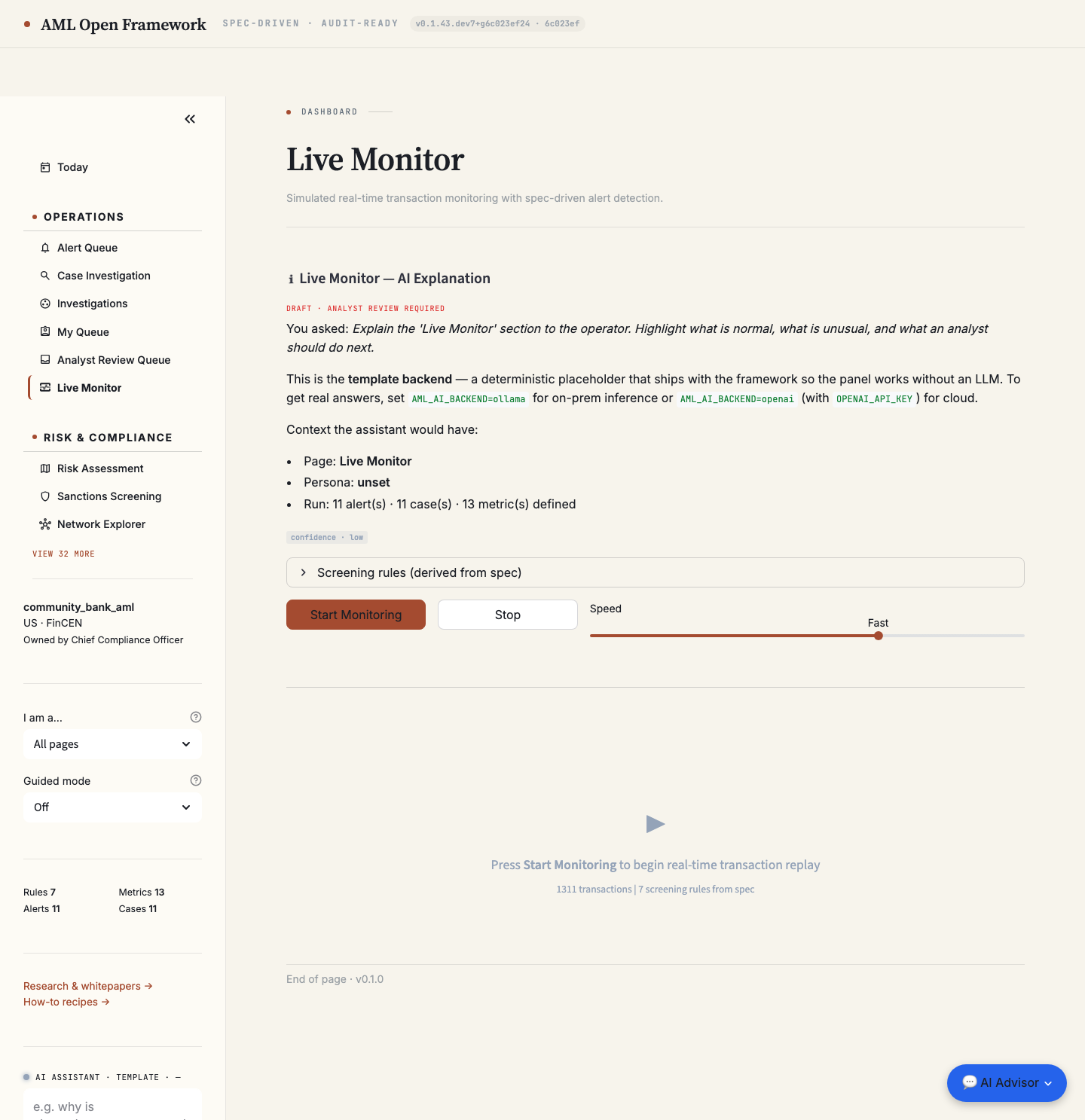

Live Monitor¶
Real-time transaction monitoring simulation with spec-derived alert conditions. Screening rules are extracted from the spec's aggregation_window filters and having thresholds. An expandable panel shows which rules drive the screening.

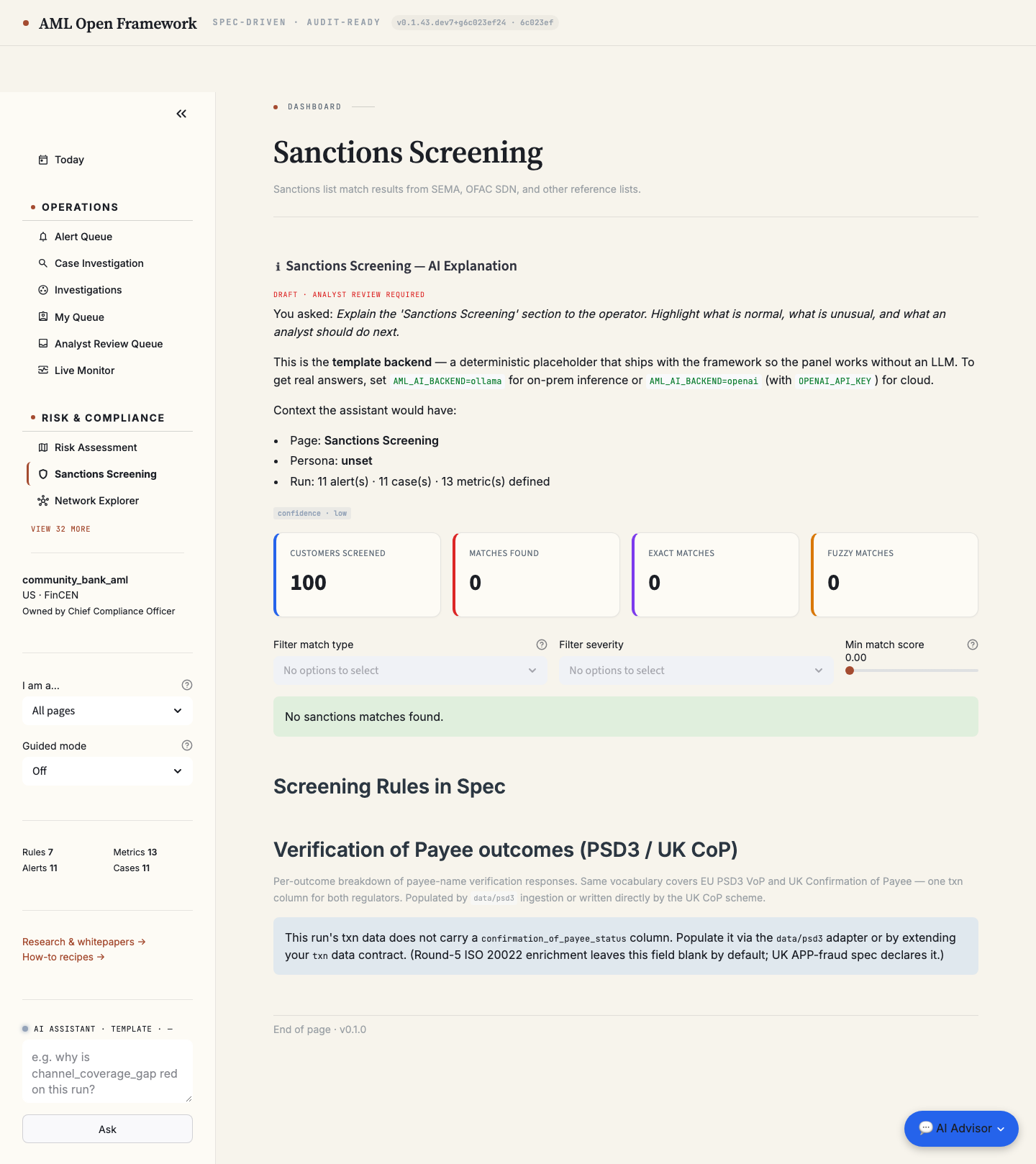

Sanctions Screening¶
Executes list_match rules against reference sanctions lists (SEMA, OFAC SDN) with exact or fuzzy (token-overlap) matching. Shows match results with confidence scores, matched customer profiles, and the screening rules from the spec.

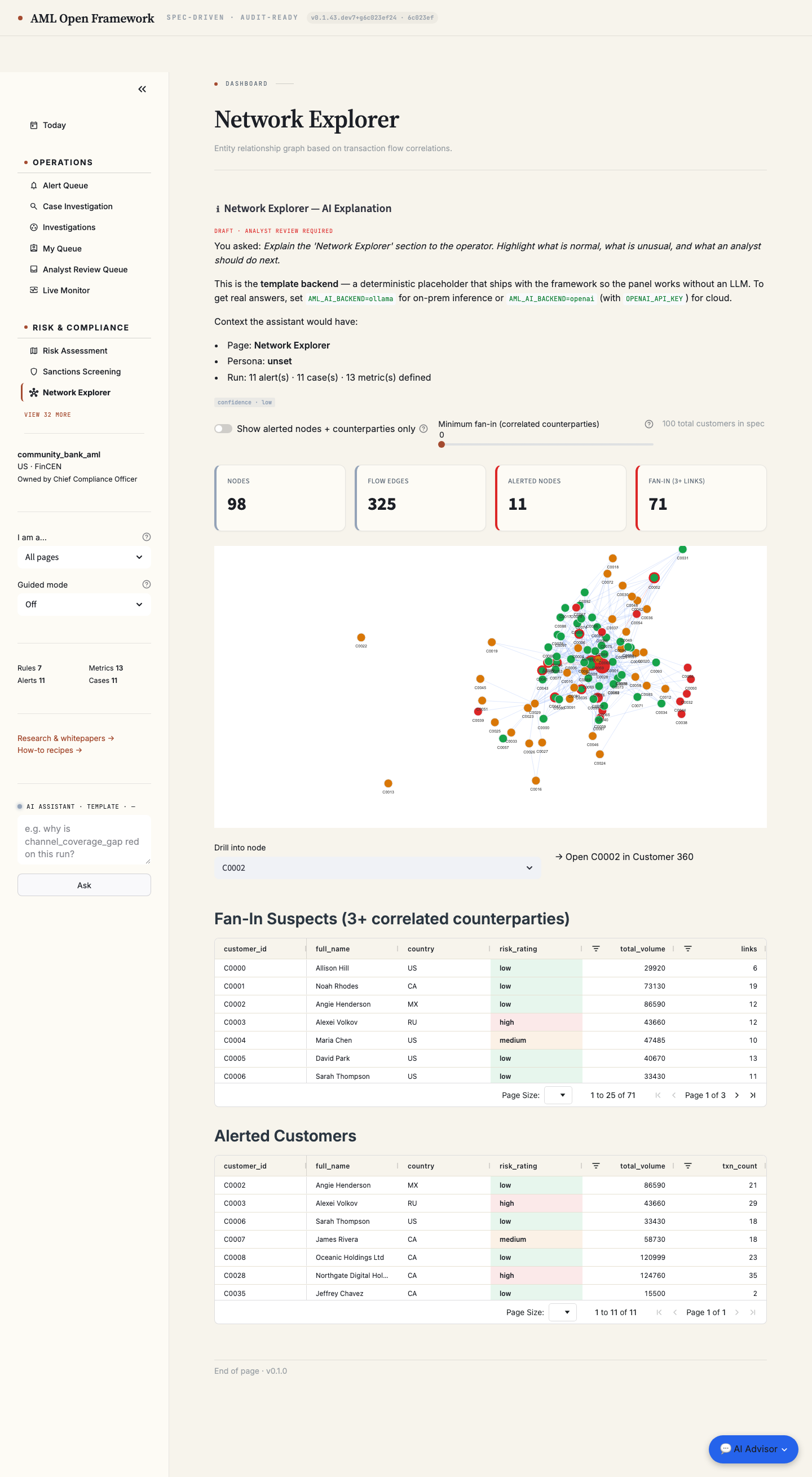

Network Explorer¶
Interactive entity relationship graph built with networkx and streamlit-agraph. Edges represent temporal correlation (outflow from one customer followed by inflow to another within 1 hour) — this is how pass-through and layering patterns surface. Fan-in detection counts distinct correlated counterparties. A "Detected mule rings" section reads <run-dir>/mule_rings.json (written by the offline aml detect-mule-rings <spec> <run-dir> CLI, #498) and lists dense identity-link communities — advisory, an investigator confirms before action.
Strategic Pages¶

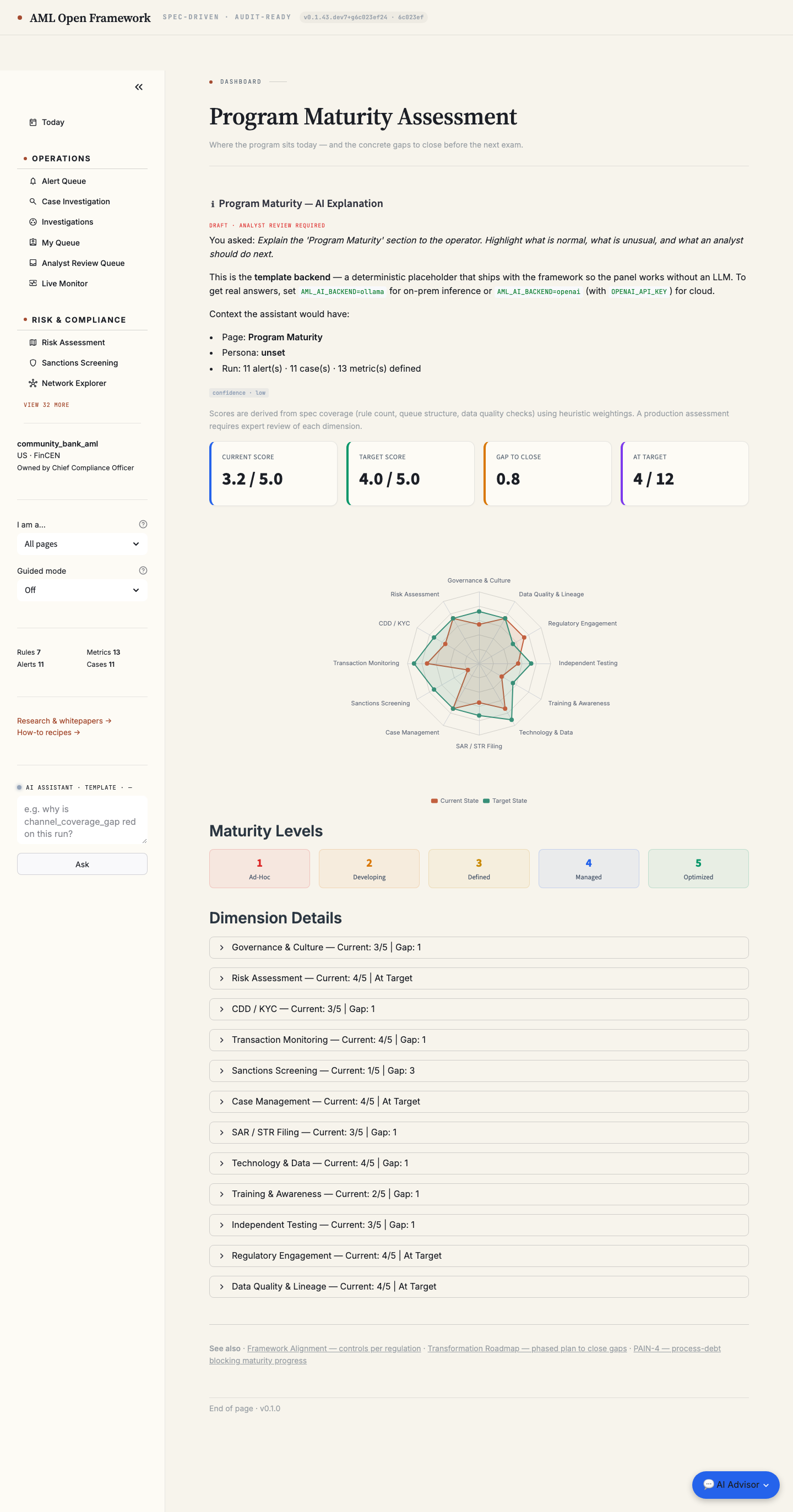

Program Maturity Assessment¶
12-dimension maturity spider chart based on Big-4 consulting firm methodologies (Deloitte, EY, PwC, KPMG). Current scores are derived from spec coverage (number of active rules, workflow queues, data quality checks). Target scores show where the program needs to be. Expandable dimension cards provide assessment rationale and recommendations.

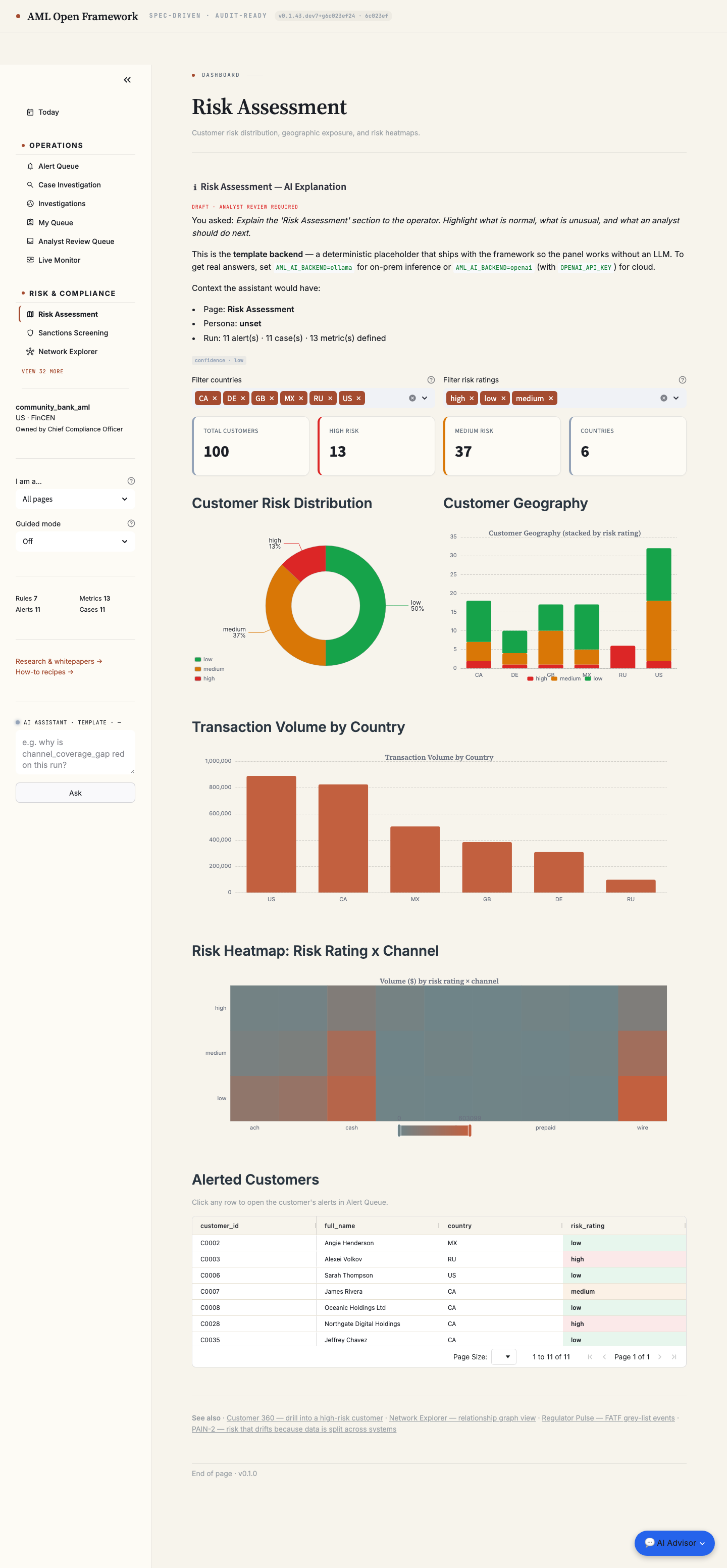

Risk Assessment¶
Customer risk distribution (low/medium/high), geographic exposure by country, transaction volume heatmap (risk rating × channel), and a table of all alerted customers with their profiles.

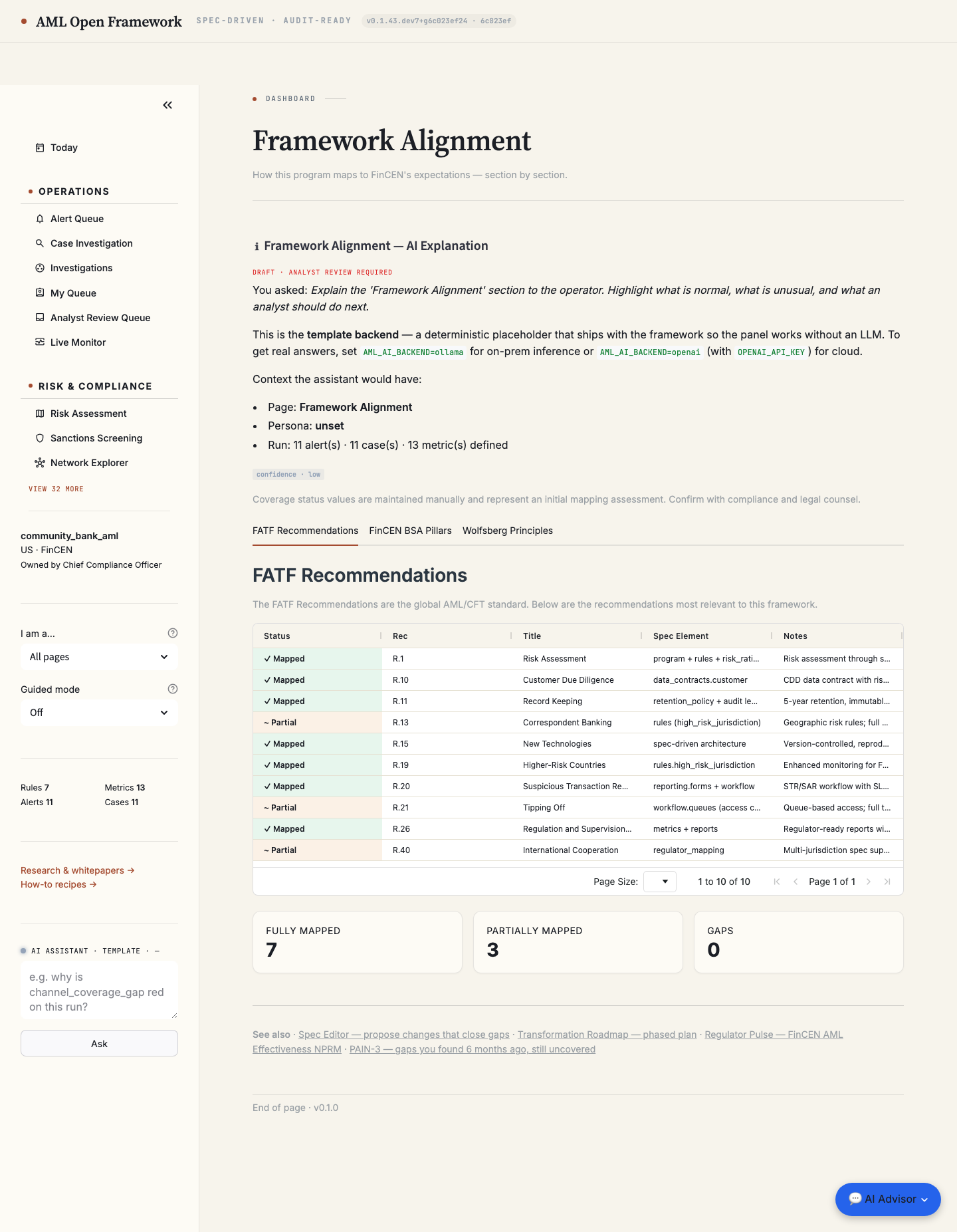

Framework Alignment¶
Three-tab mapping of spec primitives to international regulatory standards: - FATF 40 Recommendations — 10 key recommendations mapped with coverage status - FinCEN BSA 6 Pillars — including the April 2026 proposed 6th pillar (formalized risk assessment) - AMLD6 Requirements — 7 EU articles mapped (Art.8 Risk Assessment through Art.50 STR) - Wolfsberg Principles — 8 principles with gap identification
Tabs auto-switch based on jurisdiction (US → FinCEN BSA, CA → PCMLTFA/OSFI, EU → AMLD6).
AMLA RTS coverage tab (EU-only, #528): for an EU-jurisdiction program whose spec carries AMLR (Reg (EU) 2024/1624) citations, a fourth tab appears alongside AMLD6 Requirements — dashboard/frameworks.py::build_amla_rts_alignment. It maps the spec's rule citations onto the three AMLA RTS effectiveness articles: CDD-information RTS (AMLR Art. 28(1)), ongoing monitoring of the business relationship (AMLR Art. 26), and targeted-financial-sanctions screening (AMLR Art. 20(1)(d)). Each shows a three-state indicator — ✓ mapped (a covering rule cites the article and declares an evidence trail), ∼ partial (cited but no covering rule declares evidence), ✗ gap (no rule cites the article). The same coverage data backs the offline aml amla-effectiveness-report CLI (metrics/amla_effectiveness.py). examples/eu_bank/aml.yaml is the reference implementation carrying all three citations.
Transformation Roadmap¶
4-phase Gantt chart following Big-4 AML program transformation patterns: Assessment (Weeks 1-4), Foundation (Weeks 5-16), Advanced Analytics (Weeks 17-30), Optimization (Weeks 31-52). Each phase includes milestones, deliverables, and status tracking.

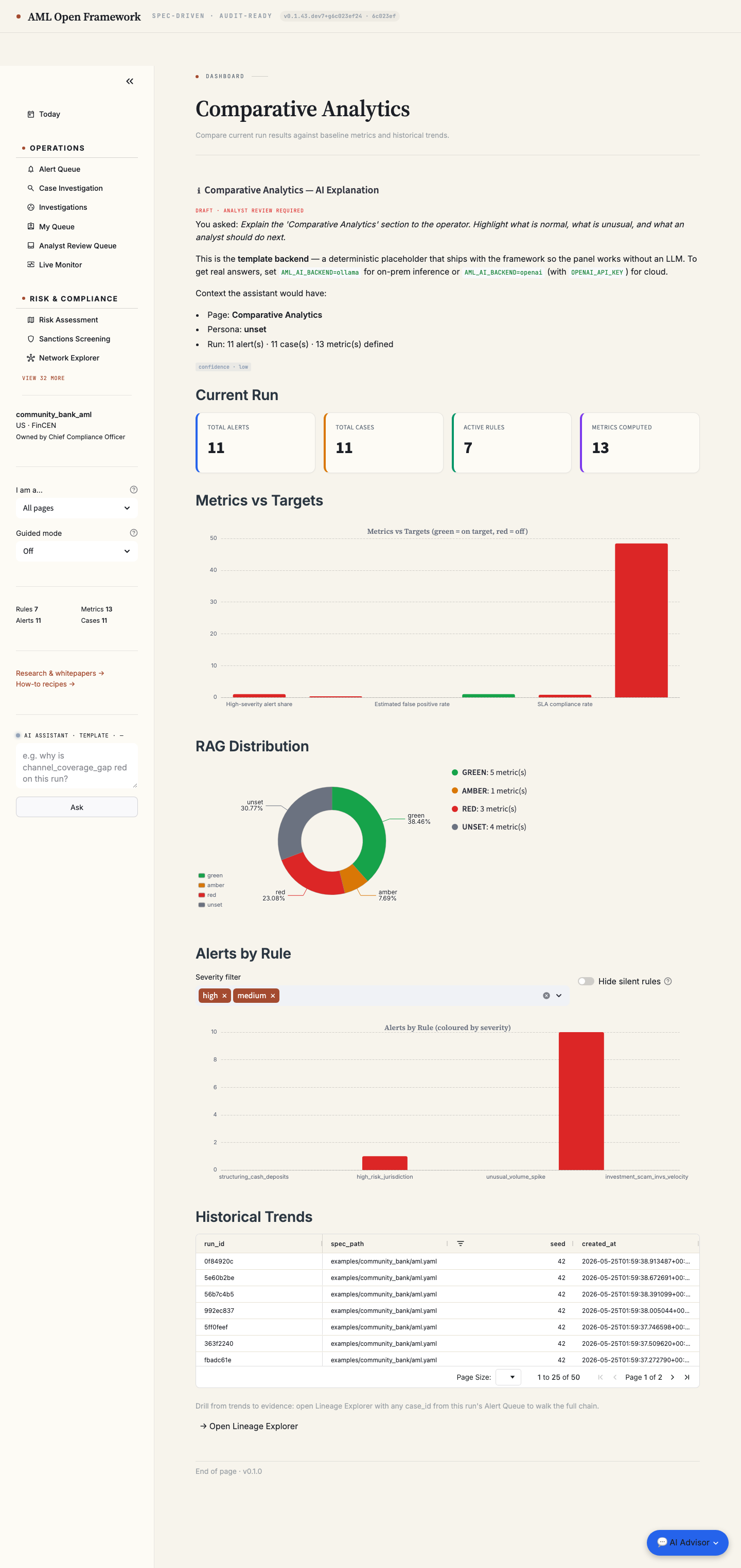

Comparative Analytics¶
Run-over-run comparison showing metrics vs targets, RAG distribution, and per-rule alert counts. With stored run history, shows trends over time.

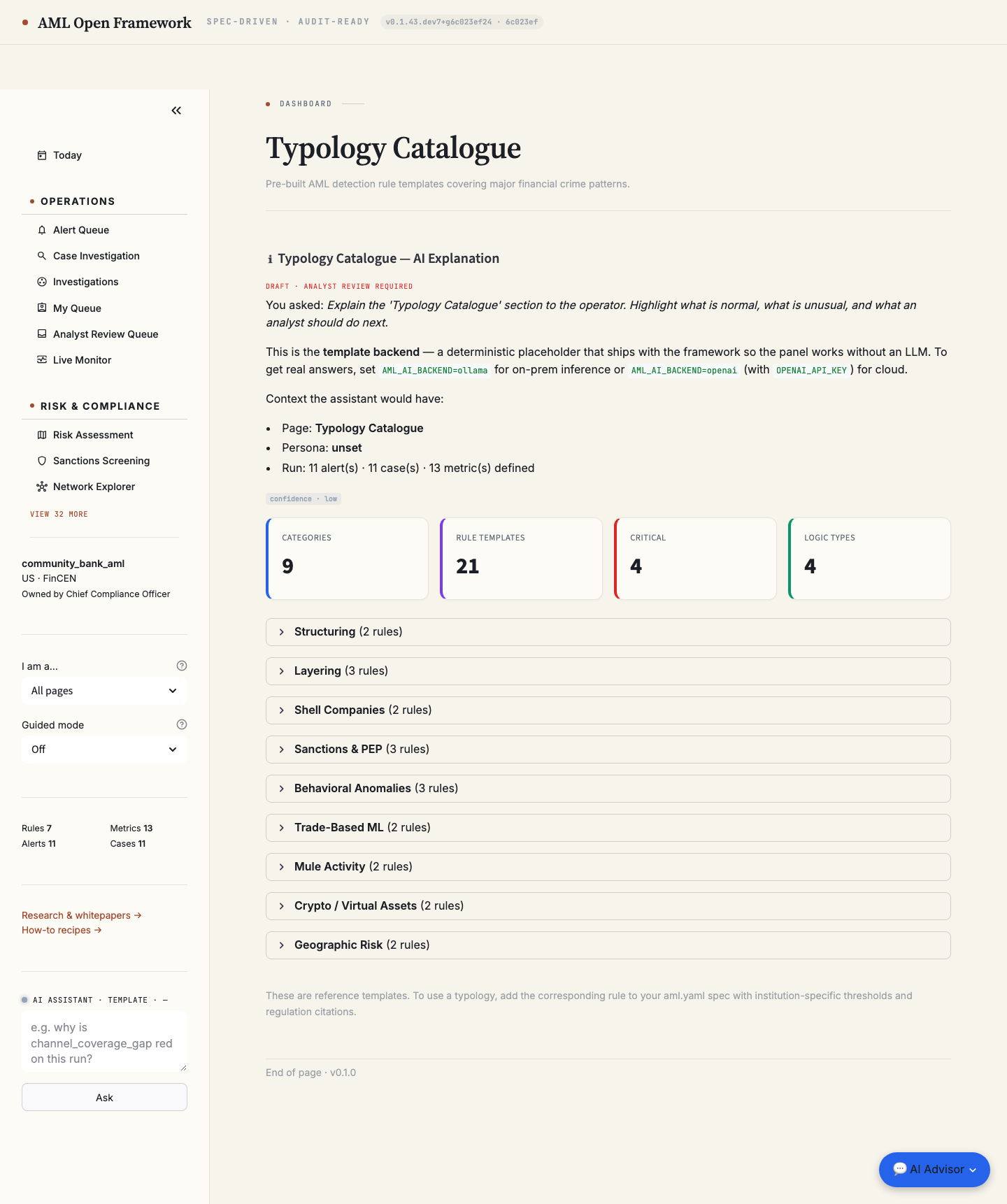

Typology Catalogue¶
Pre-built library of 20+ AML detection rule templates across 9 categories: structuring, layering, shell companies, sanctions/PEP, behavioral anomalies, trade-based ML, mule activity, crypto/virtual assets, and geographic risk. Browse templates and add to your spec with institution-specific thresholds.

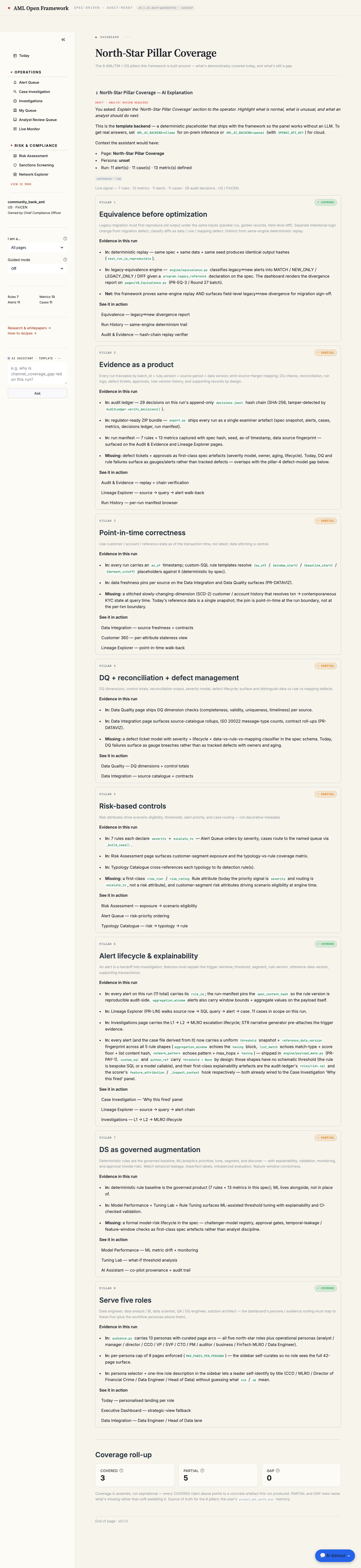

North Star Coverage¶
The 8 AML/TM + DS pillars this framework is built around (equivalence-before-optimization, evidence-as-a-product, point-in-time correctness, DQ/reconciliation/defect management, risk-based controls, alert lifecycle & explainability, DS as governed augmentation, serve five roles) — surfaced as 8 cards classified COVERED / PARTIAL / GAP with concrete artefacts from the live spec/run and links to the relevant dashboard pages (PR-NS-1). Read-only synthesis surface — no engine call, no buttons. Live roll-up: 4 COVERED / 4 PARTIAL / 0 GAP — COVERED are pillar 1 (equivalence — engine/equivalence.py + pages/48_Equivalence.py, shipped in PR-EQ-3 / Round 27), pillar 3 (point-in-time correctness — flipped PARTIAL → COVERED in M4 / #484 once effective_dated contracts + the aggregation_window.enrich as-of join resolved txn → contemporaneous reference state at the per-txn boundary), pillar 6 (alert lifecycle & explainability — flipped PARTIAL → COVERED in PR-PAY-1 / Round 28 once engine/payload_meta.py started stamping a uniform threshold + reference_data_version on every alert across all 5 rule shapes), and pillar 8 (serve five roles — audience.py persona routing). The 4 PARTIAL pillars (2 evidence-as-a-product, 4 DQ/defect lifecycle, 5 risk-based controls, 7 DS as governed augmentation) name the missing piece on each card rather than soft-pedalling it — e.g. defect-ticket lifecycle, first-class risk_tier, model-risk approval gates. Routed universally — every persona sees it, same idiom as Today / Executive Dashboard.
Engineering Pages¶

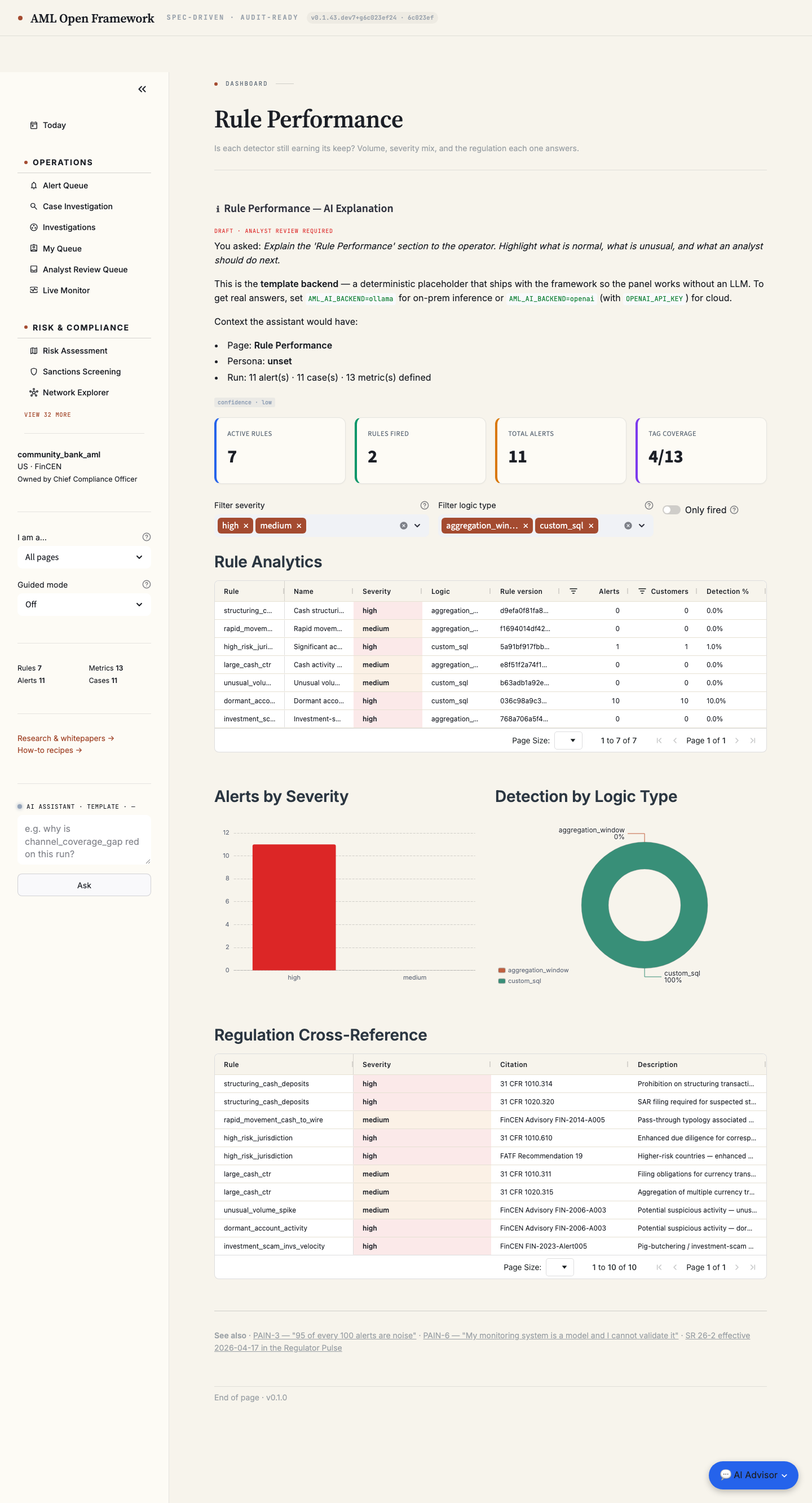

Rule Performance¶
Per-rule analytics table showing alert counts, detection rates, and logic types. Severity distribution charts, detection coverage by logic type, and a rule-to-regulation cross-reference matrix. Typology tag coverage shows which declared typologies have active detection.

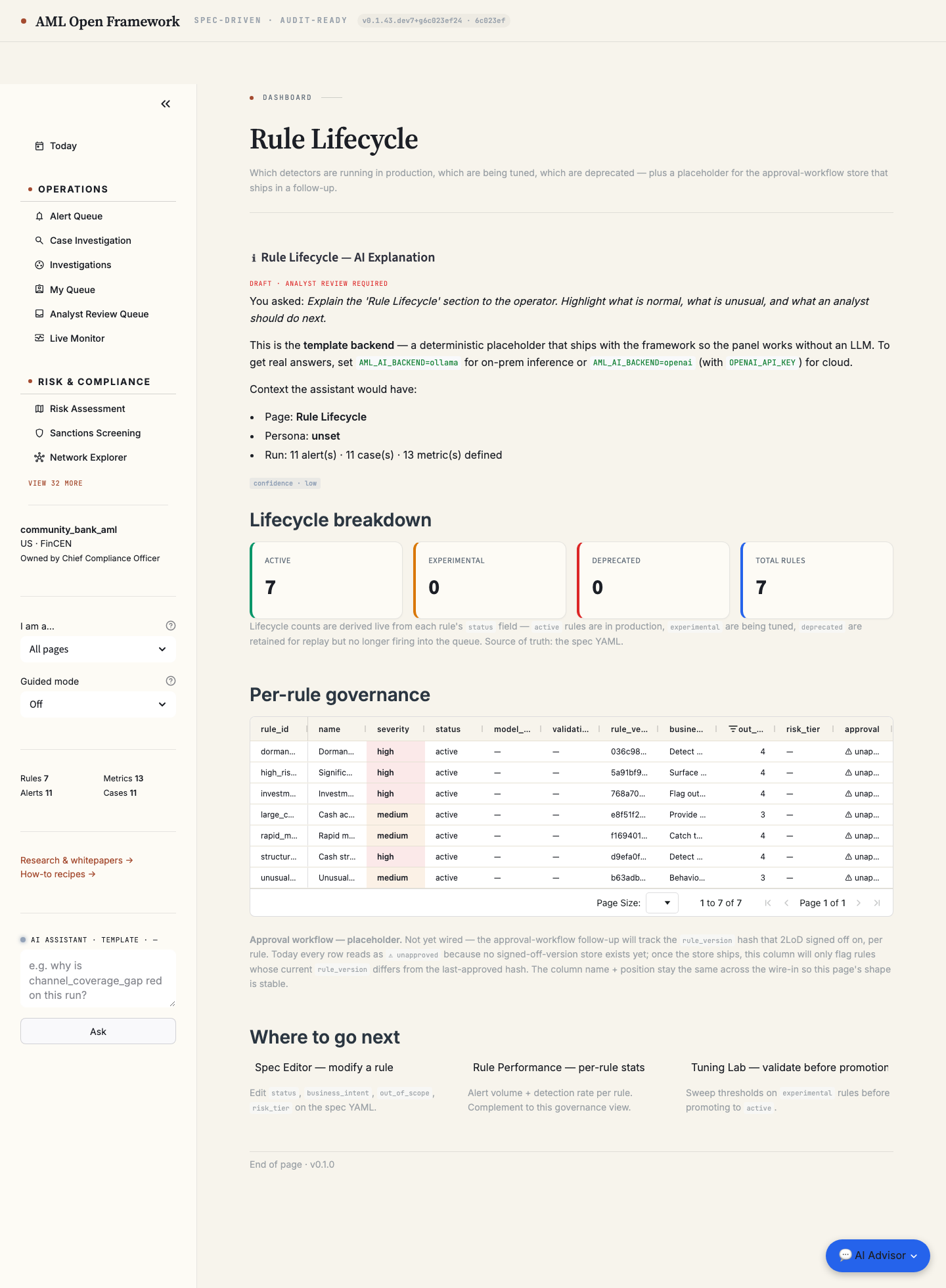

Rule Lifecycle¶
Per-rule lifecycle state (active / experimental / deprecated) plus a per-rule approval-workflow placeholder (PR-A4, closes #365). Lifecycle KPI strip counts rules by status; the governance table surfaces model_tier, validation_cadence_months, rule_version (16-hex SHA-256), business_intent (truncated), out_of_scope exclusion count, and risk_tier — deliberately different columns from Rule Performance (alert volume + detection rate) so the two pages complement instead of overlap. Sorted by status (deprecated last, then experimental, then active) so the "rules being tuned right now" band is most visible. The approval column is an HONEST placeholder: until the signed-off-version store ships in a follow-up PR, every row reads ⚠ unapproved — captioned plainly so a reviewer is never misled into thinking the workflow is wired. Cross-links to Spec Editor (modify rules), Rule Performance (per-rule stats), and Tuning Lab (validate experimental rules before promotion). Routed universally — every persona sees it, same idiom as North-Star Coverage.

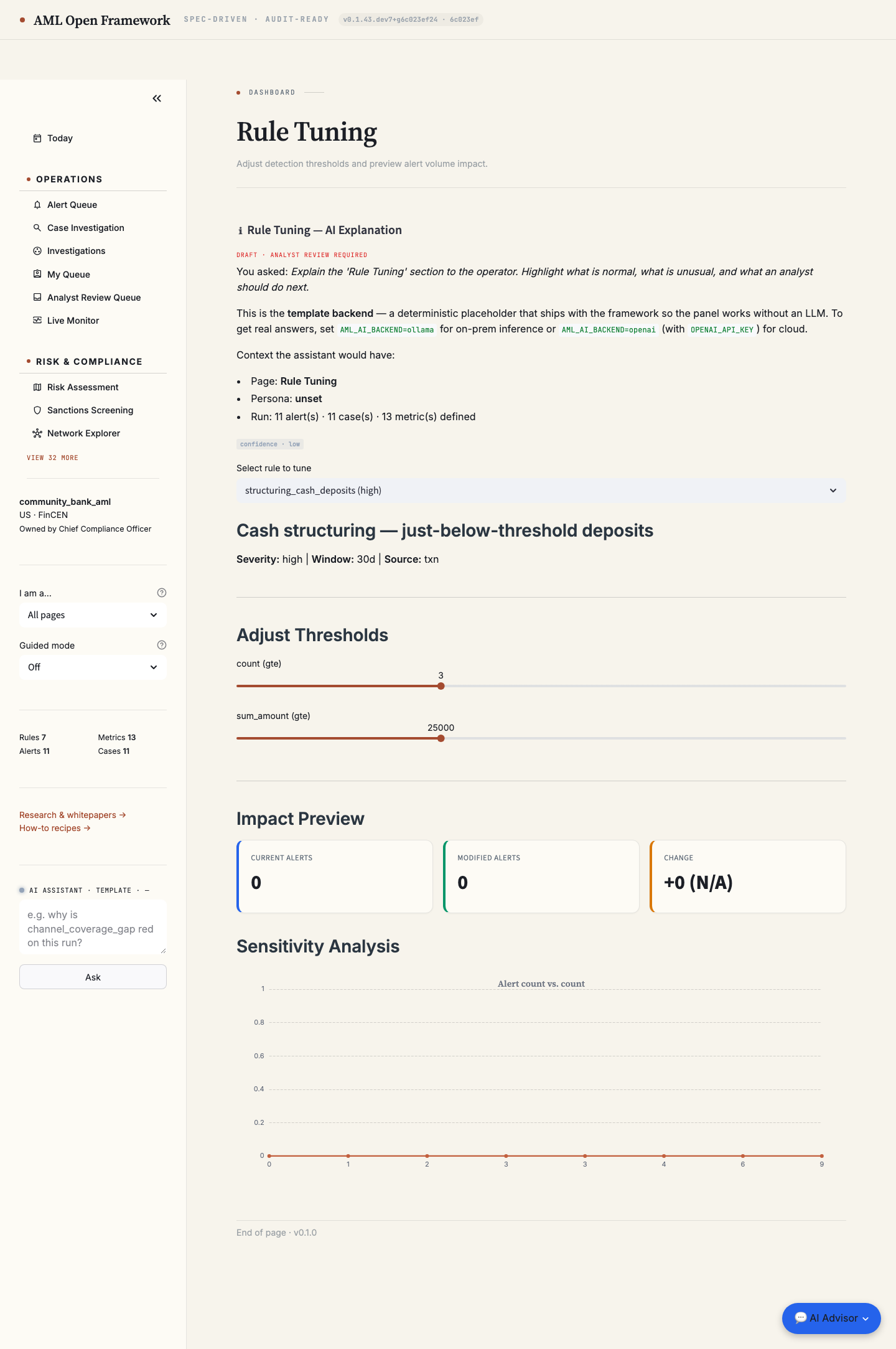

Rule Tuning¶
Interactive threshold what-if analysis. Select an aggregation_window rule, adjust thresholds with sliders, and see the alert count change in real time. Sensitivity analysis chart shows threshold vs alert volume trade-off. Does not modify the spec — shows impact for review before YAML edit.

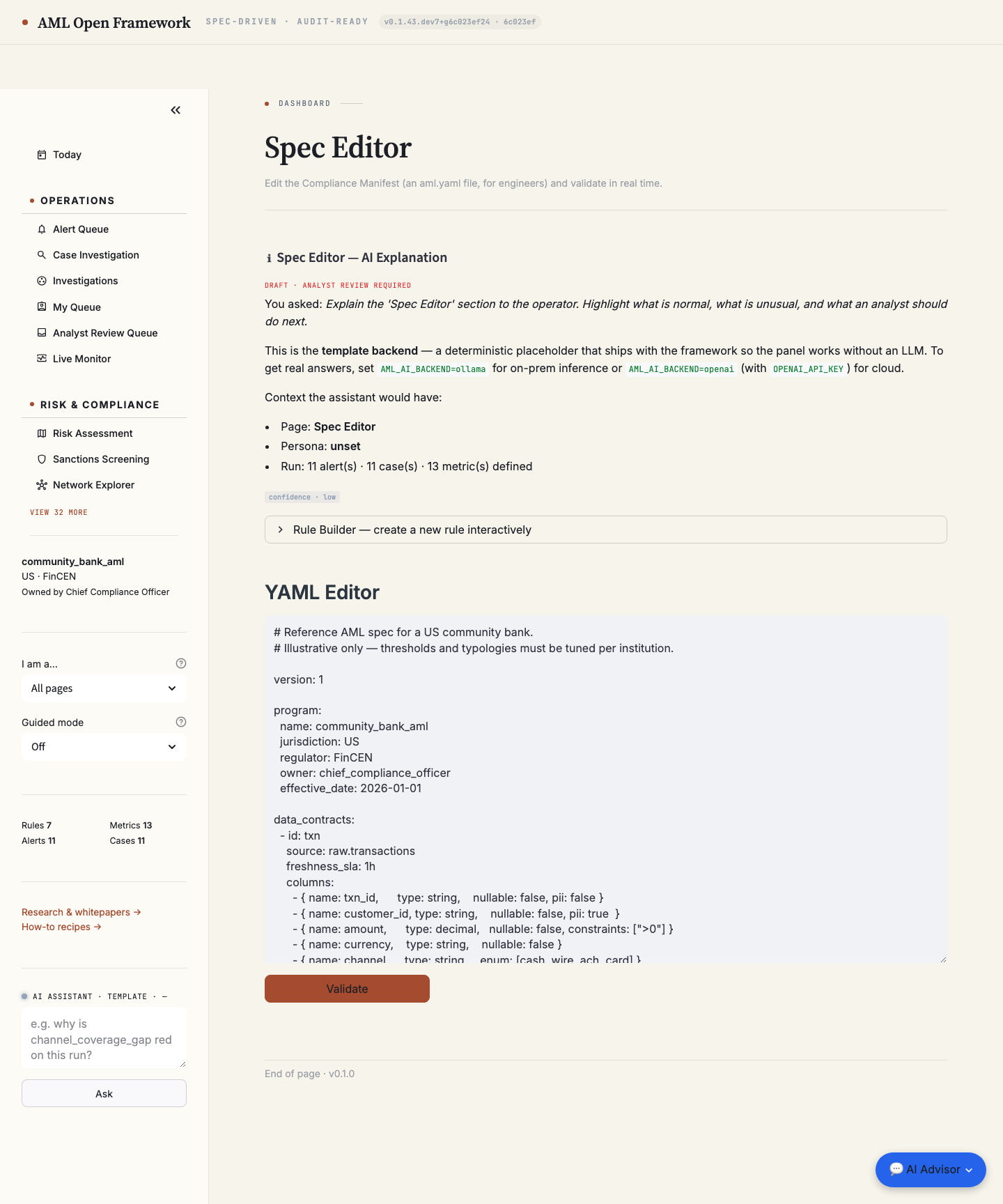

Spec Editor & Rule Builder¶
Edit the AML spec YAML in-browser with live validation. The interactive Rule Builder generates YAML snippets for all 4 rule types (aggregation_window, custom_sql, list_match, python_ref) — configure fields, thresholds, and escalation targets through a form UI.

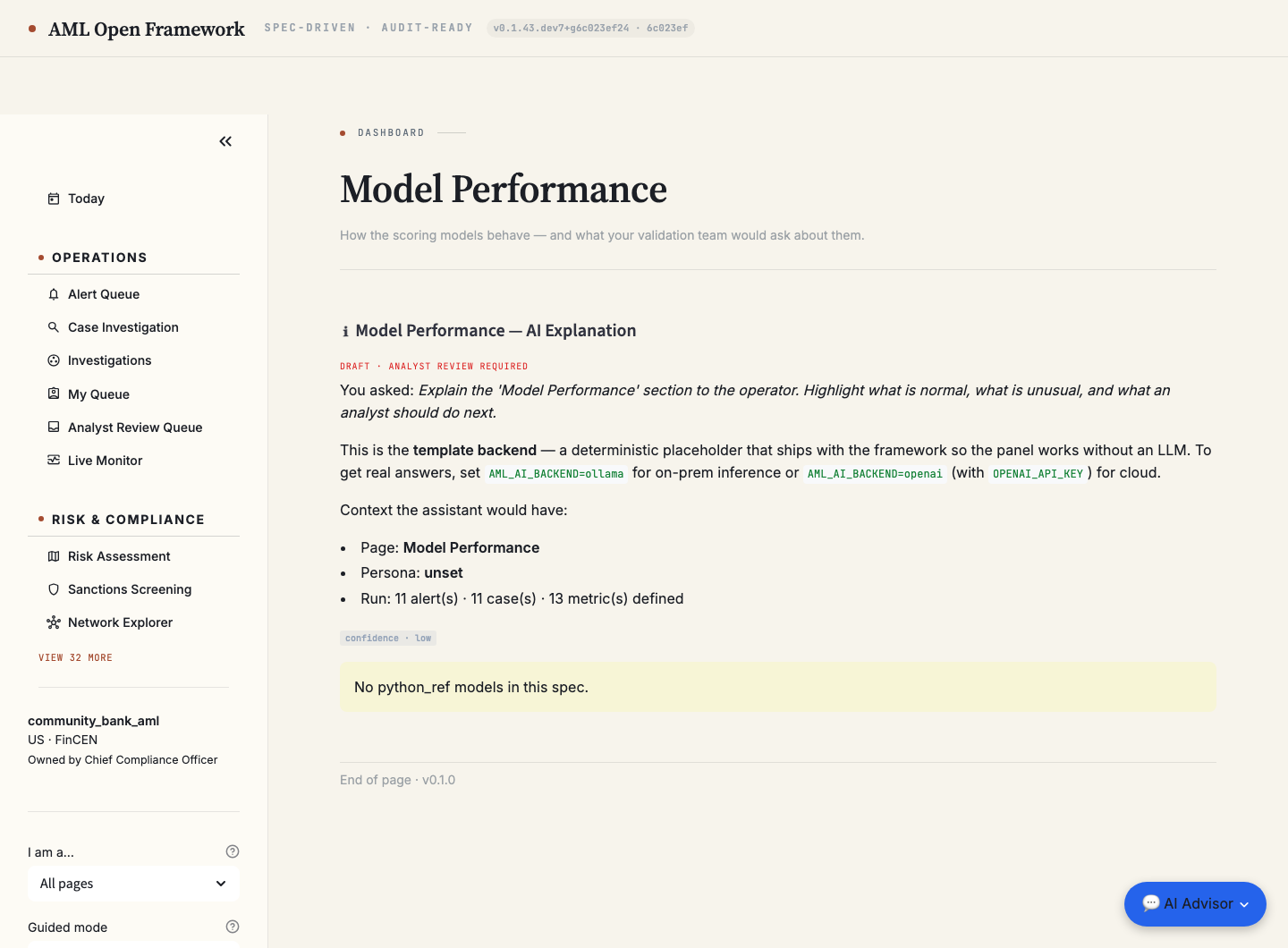

Model Performance¶
ML model analytics for python_ref rules: model inventory with version tracking, score distribution histograms with threshold markers, per-alert details, and model risk management metadata (model_id, version, callable, regulation citations).

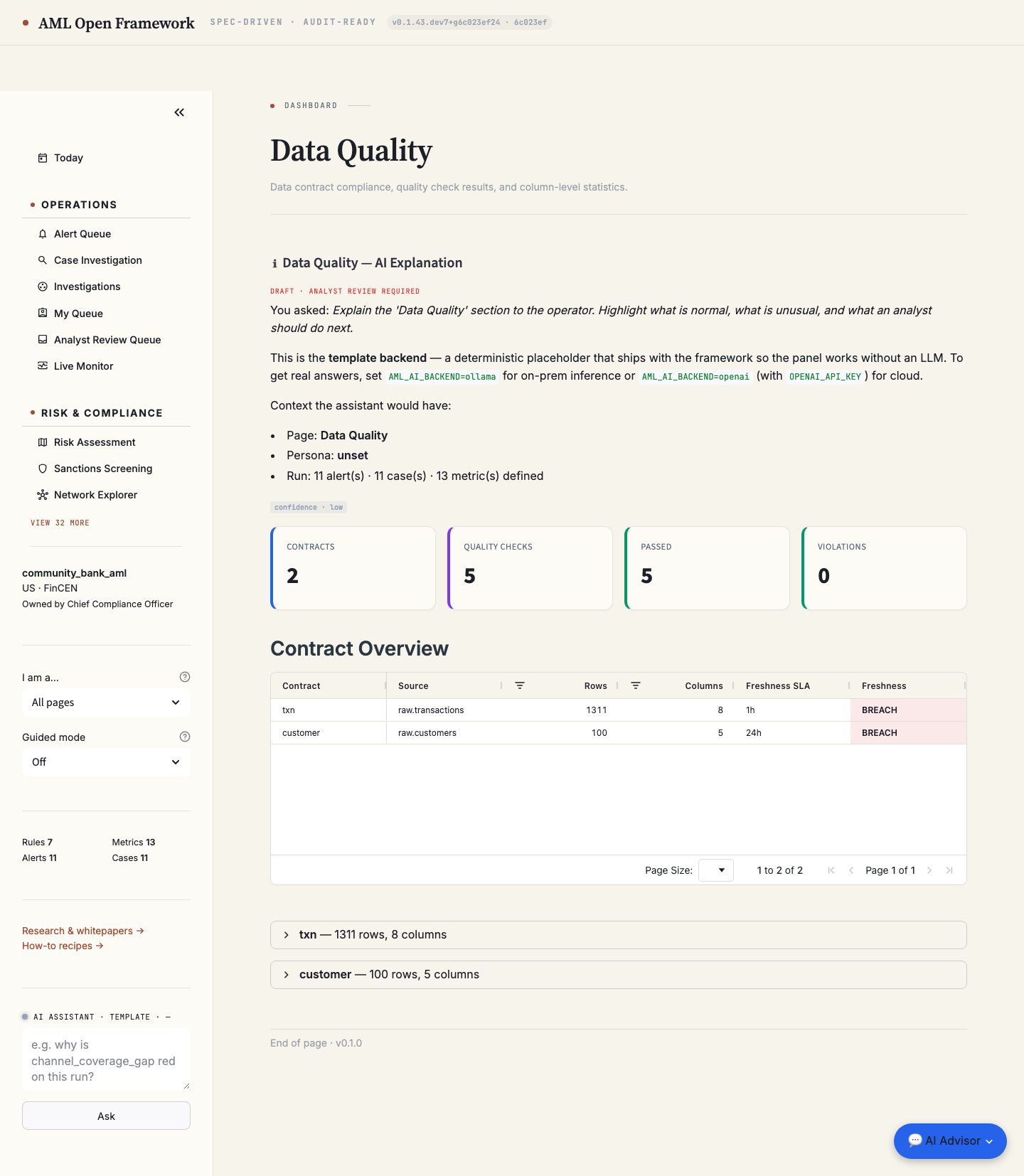

Data Quality¶
Executes data contract quality checks (not_null, unique constraints) against actual data. Shows PASS/FAIL per check, freshness SLA compliance with breach detection, and column-level statistics (non-null count, unique values, types).

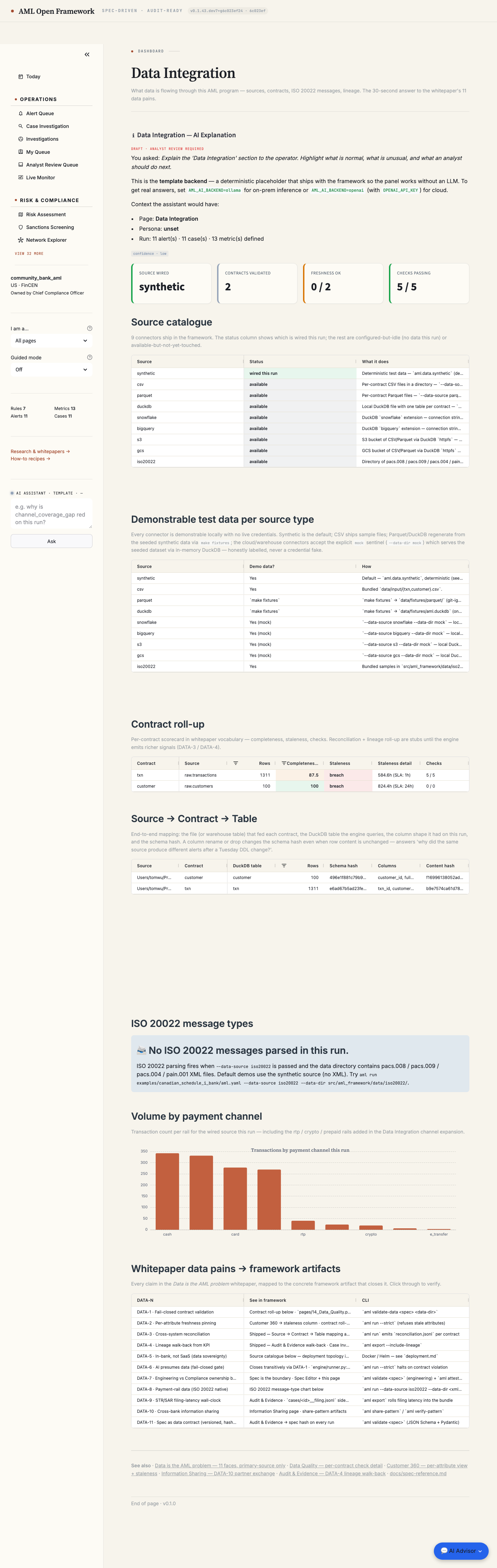

Data Integration¶
The 30-second answer to "what data is flowing through this AML program?" — built for the Data Engineer / Head of Data persona. Five sections: KPI strip (sources wired / contracts validated / freshness OK / checks passing), source catalogue (the 9 connectors data/sources.py ships, with per-connector status), contract roll-up in whitepaper vocabulary (completeness / staleness / checks — avoids the bare phrase "data quality" per the whitepaper style guide), ISO 20022 message-type counts (pacs.008 / pacs.009 / pacs.004 / pain.001 parsed this run), and a DATA-N → framework artifact map linking each of the 11 whitepaper data pains to the page / CLI command that closes it.

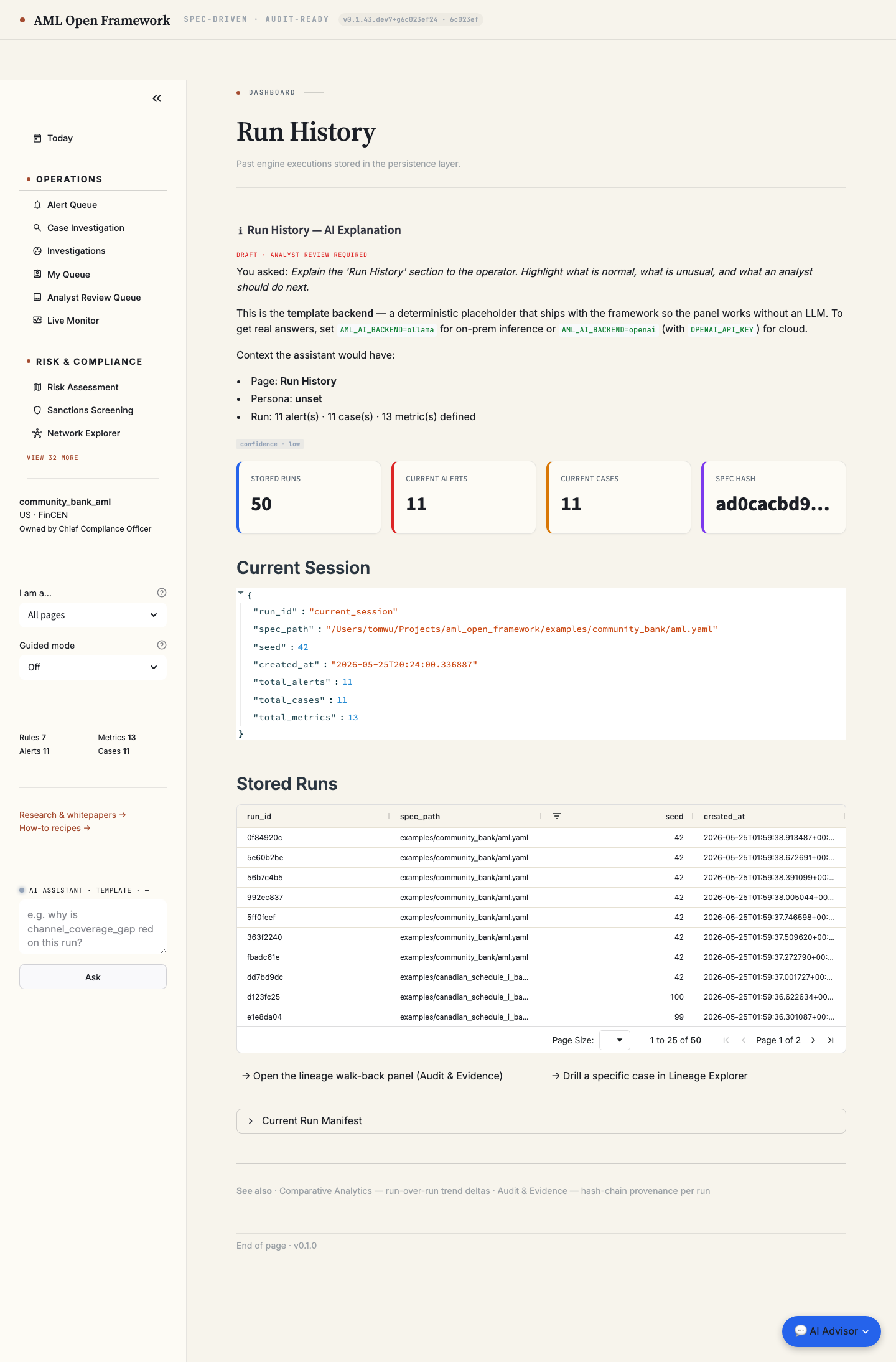

Run History¶
Past engine executions from the persistence layer (SQLite locally, PostgreSQL in production). Shows current session metadata, stored runs with spec hashes, and run manifest for audit traceability.
Audit Pages¶

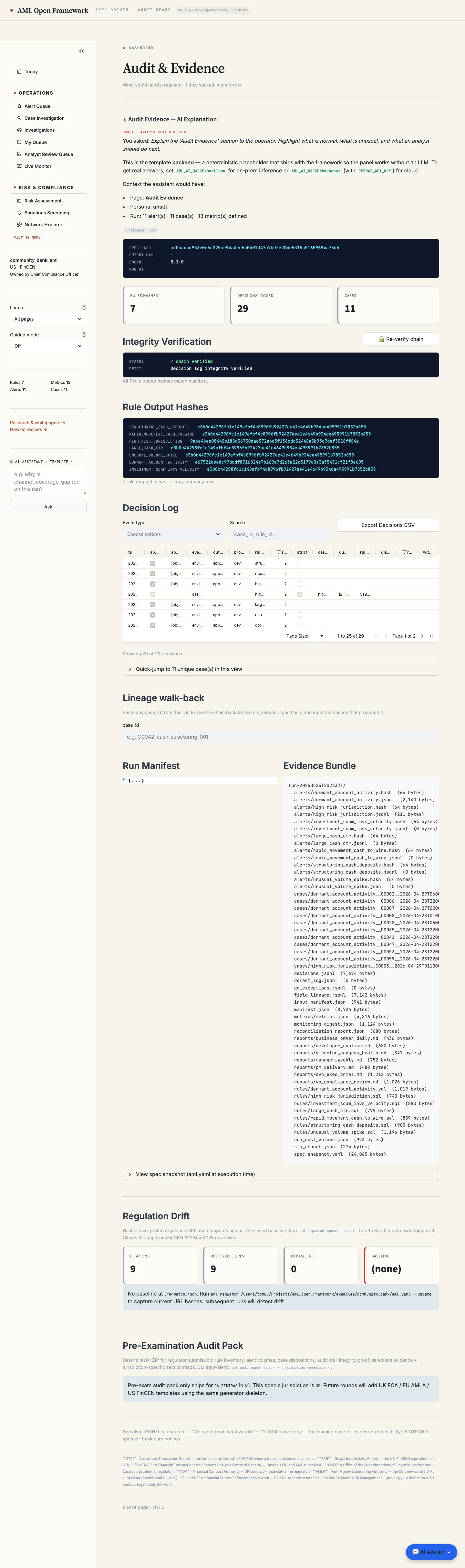

Audit & Evidence¶
Full run manifest with JSON viewer, SHA-256 hash verification for every rule output, append-only decision log, evidence bundle file tree with byte sizes, and the spec snapshot captured at execution time. This is the auditor and regulator view.

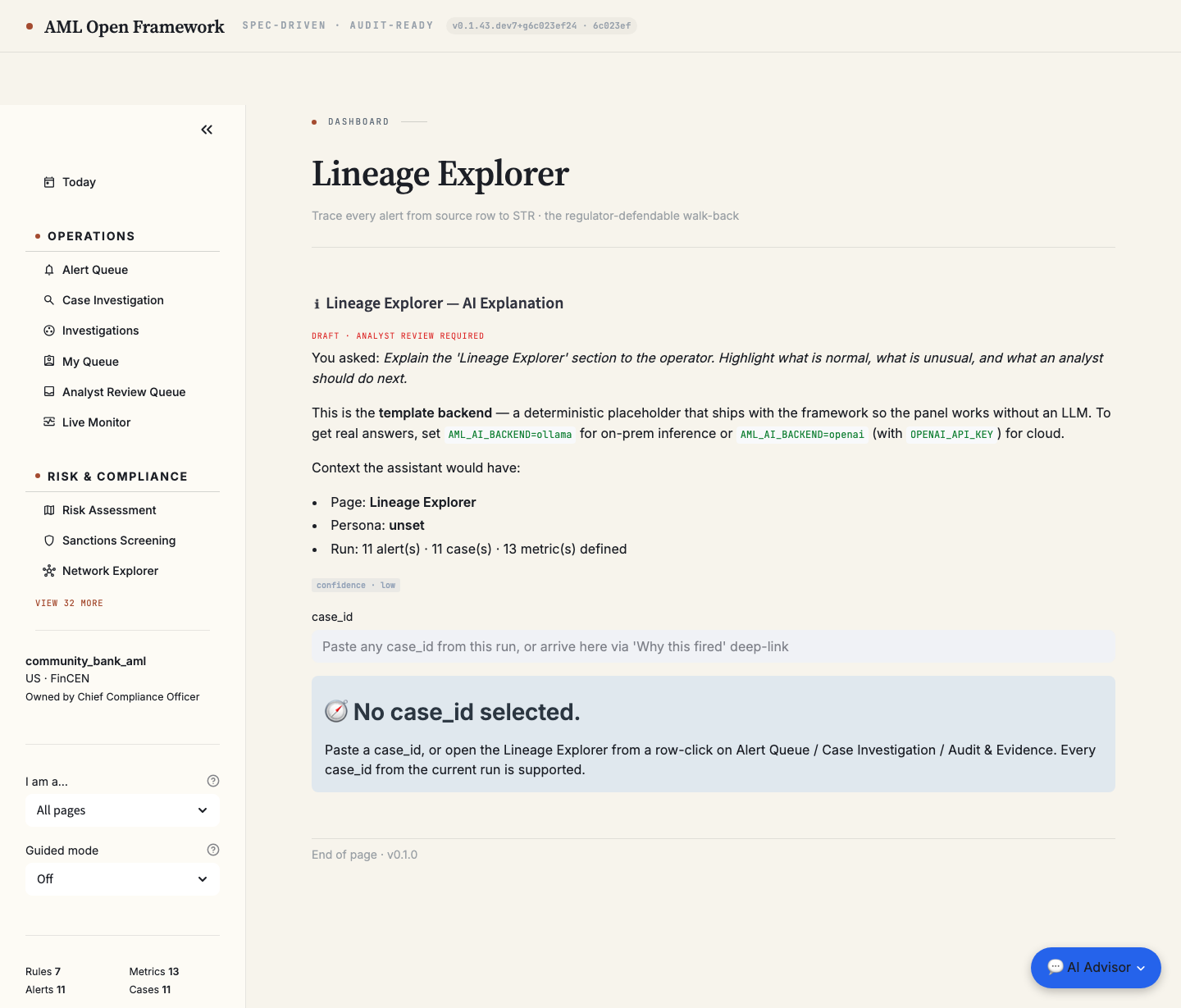

Lineage Explorer¶
End-to-end "source → DuckDB table → rendered SQL → matched rows → alert → case → STR" walk-back. The case is chosen from a searchable case_id dropdown over the current run's cases (no hand-typing run-stamped IDs); it is also deep-linkable from Audit & Evidence and Case Investigation via ?case_id=..., which pre-selects the matching case. Mermaid graph + run anchors + source provenance (path + schema_hash + content_hash) + collapsible rule SQL + matched-rows AG Grid + decision timeline + JSON download. Powered by walk_lineage() after PR-LIN-1..4 lifted rule_sql, source_path, schema_hash, rule_version (every event), and matched_row_ids into the lineage chain.

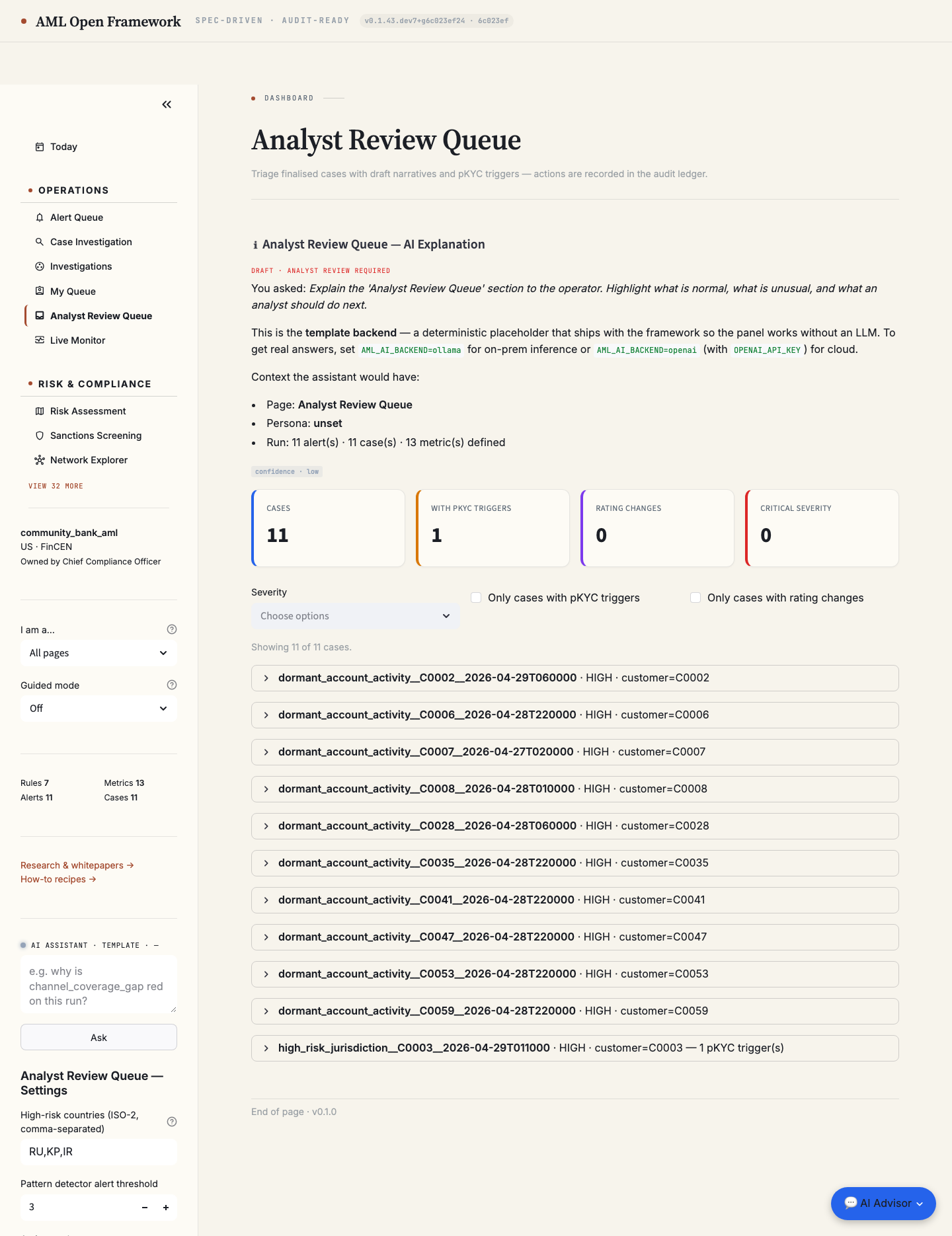

Analyst Review Queue¶
Network-pattern alerts get an explainability surface: the matched subgraph rendered as a Mermaid diagram, alongside the alert payload and an analyst decision form (escalate / close / request more evidence). Composes with engine/explain.py:to_mermaid.

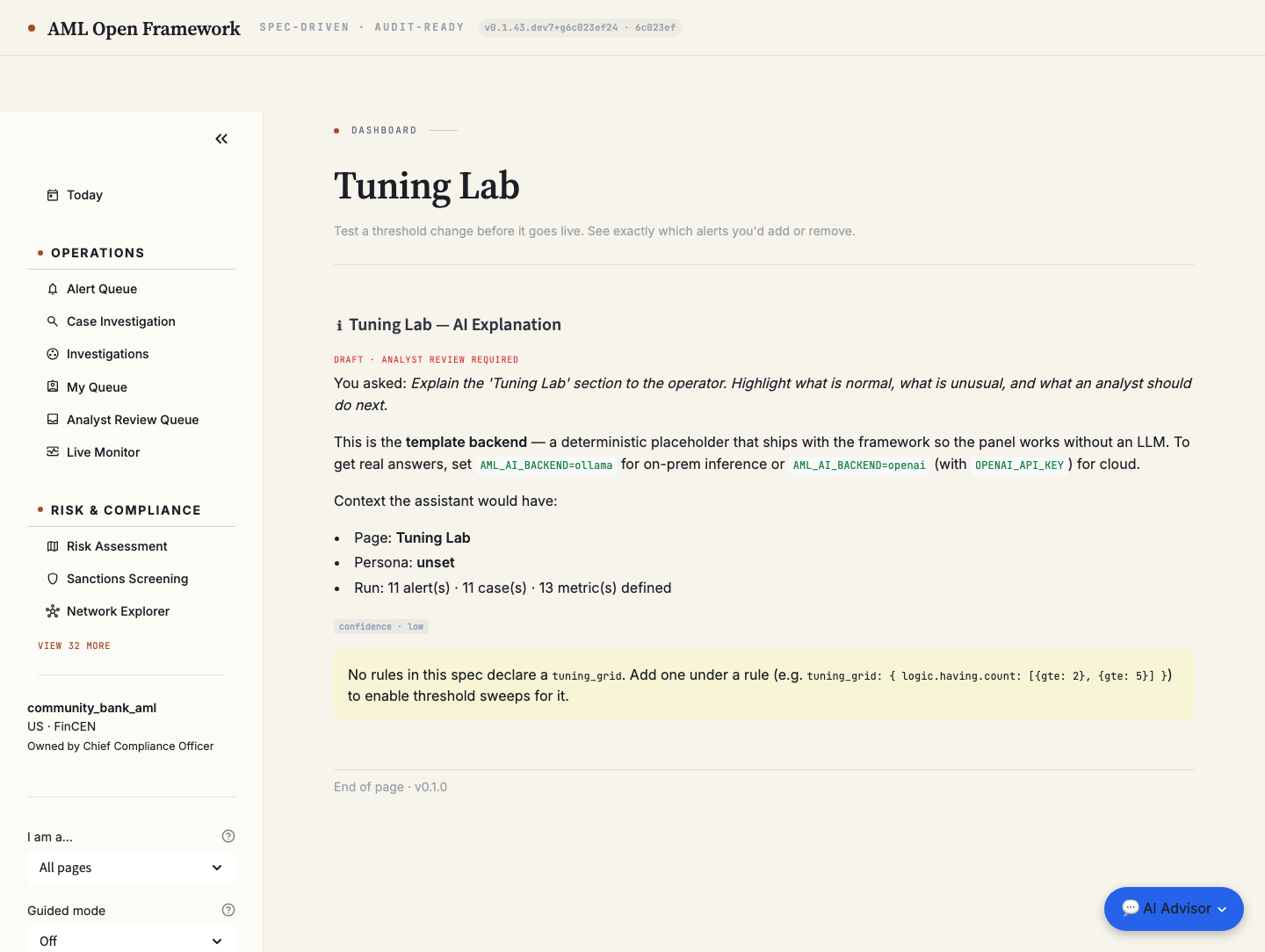

Tuning Lab¶
Pareto-frontier exploration of rule threshold combinations. Loads labelled historical alerts, sweeps thresholds across the spec's tuning_grid, and plots true-positive rate × false-positive rate. Used to defend threshold choices in model risk management reviews.

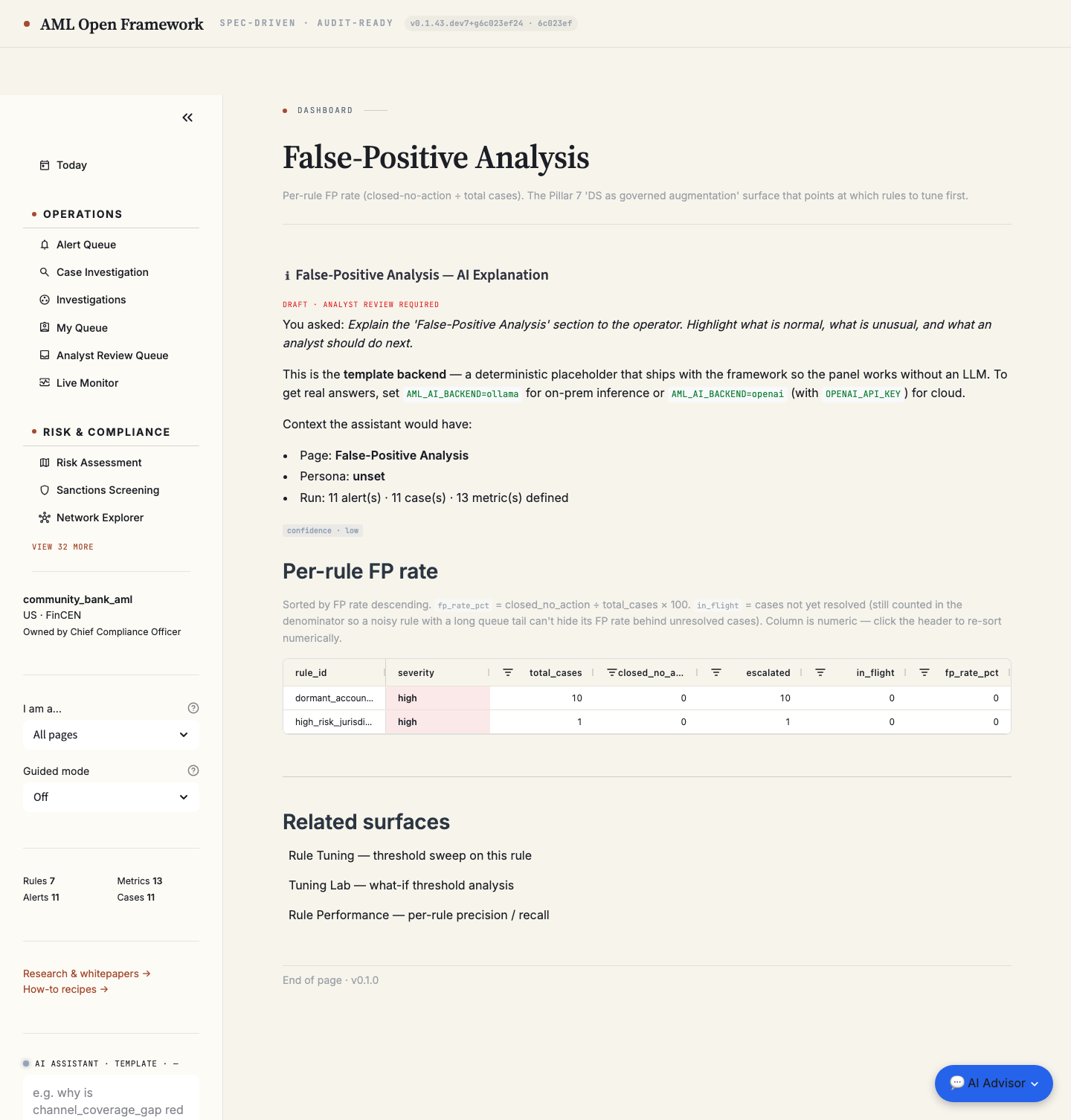

FP Analysis¶
Per-rule false-positive rate (closed_no_action ÷ total cases) derived at render time from the cached df_cases. High-FP rules above 70% surface as a coloured callout at the top with a Tuning Lab cross-link; the per-rule table is sortable on the numeric fp_rate_pct column so AG Grid orders worst-offenders first. Filing queues are derived from the live spec workflow (any regulator_form-bearing queue counts as escalated), so custom STR/SAR/CTR queue ids classify correctly. The Pillar 7 ("DS as governed augmentation") surface that the North-Star coverage page flags as missing. PR-E1 (closes #378). When the run emitted a suppression_report.json (i.e. program.risk_segmentation was enabled, #495), an advisory-suppression section appears here showing how many alerts each risk segment / rule de-prioritized — the tuning evidence for deprioritize_below, advisory only and never an auto-close. Universally routed — every persona sees it.
Compliance Workflow Pages¶

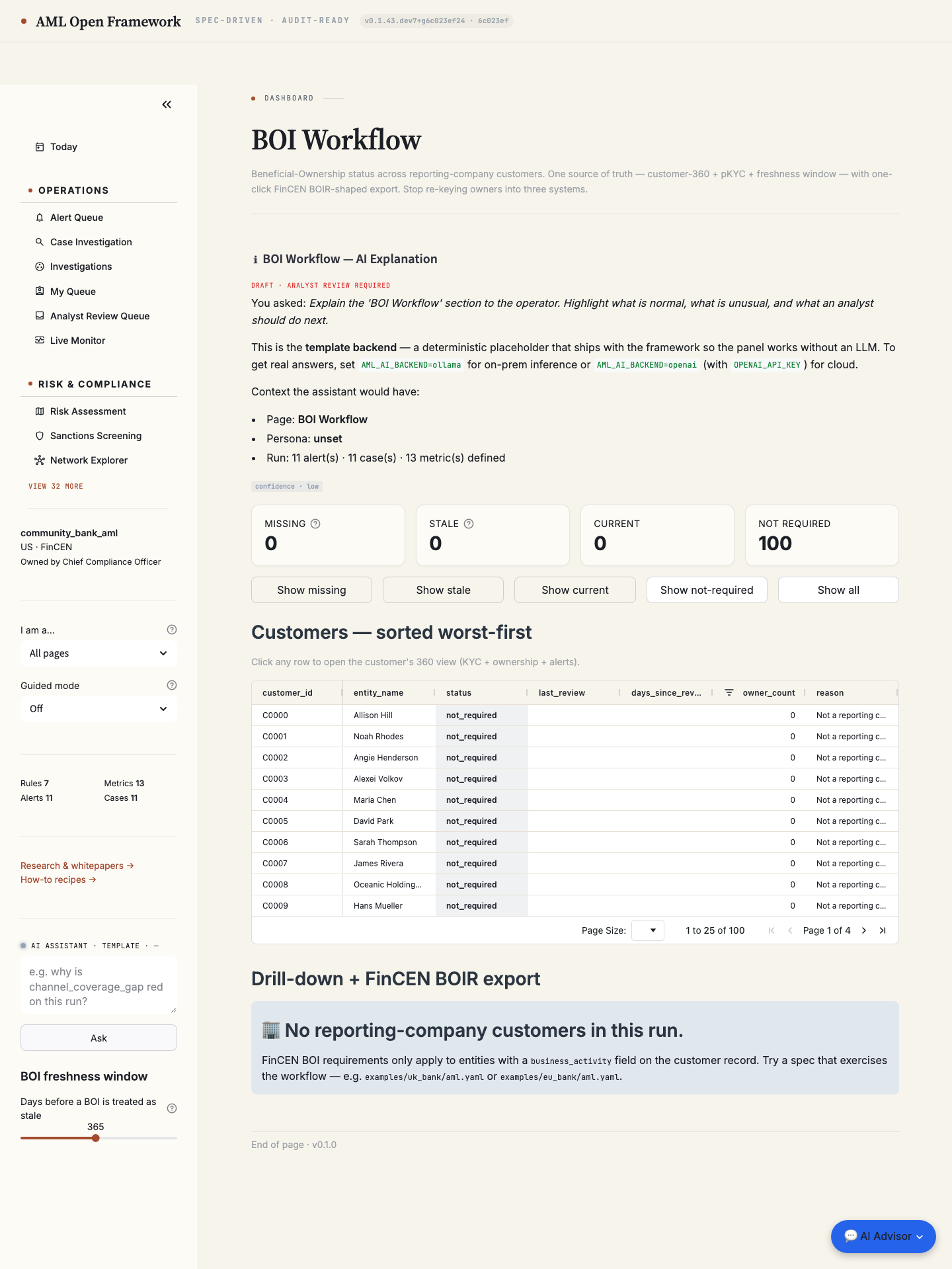

BOI Workflow¶
Beneficial-Ownership status across reporting-company customers. Single source of truth — Customer 360 + pKYC + freshness window — with one-click FinCEN BOIR-shaped JSON export. Per-customer table sorted worst-first (missing → stale → current); KPI buttons filter the table by status. Stops the re-keying-into-three-systems failure mode the KYC operator hits today.

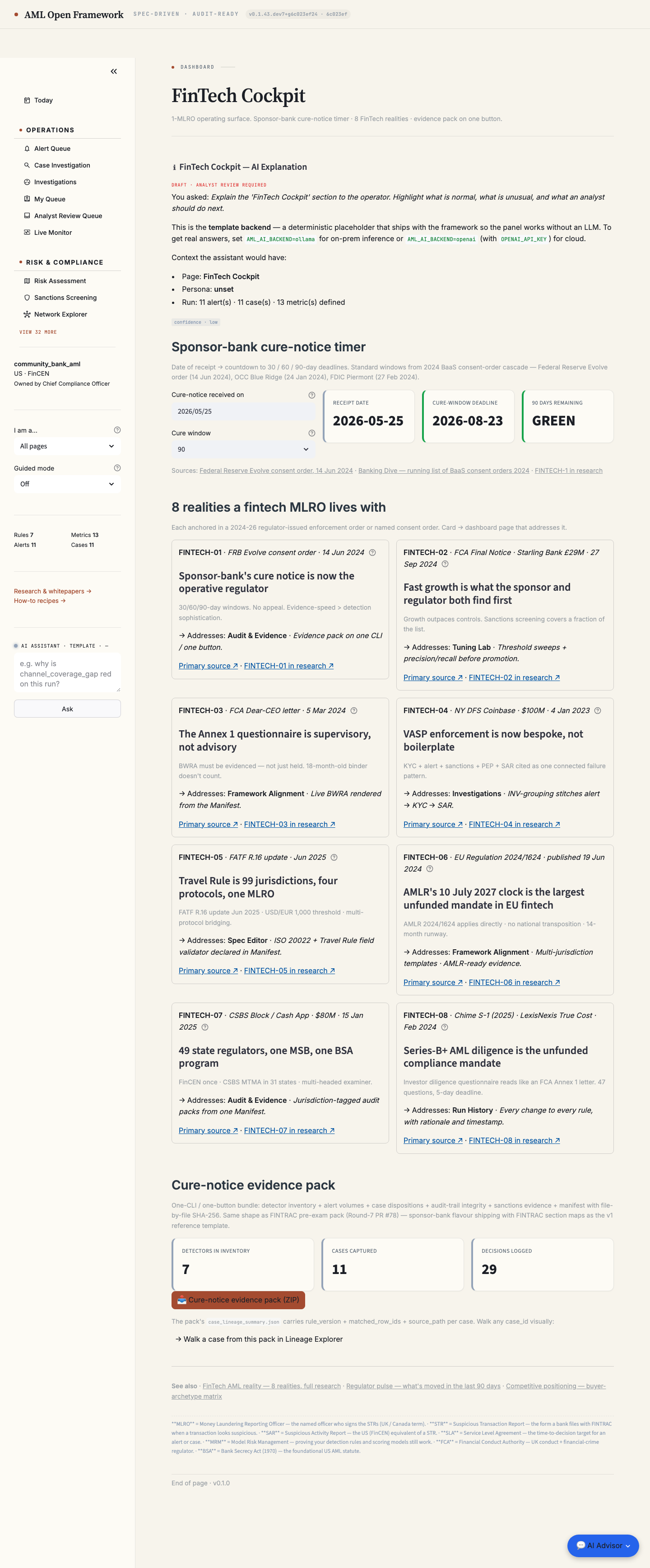

FinTech Cockpit¶
1-MLRO operating surface for FinTech / EMI / VASP programs. Sponsor-bank cure-notice timer, the 8 FinTech AML realities (research-doc anchored), and a one-button evidence pack. Built for the persona that IS all three lines of defence — no separate validation team to delegate to.

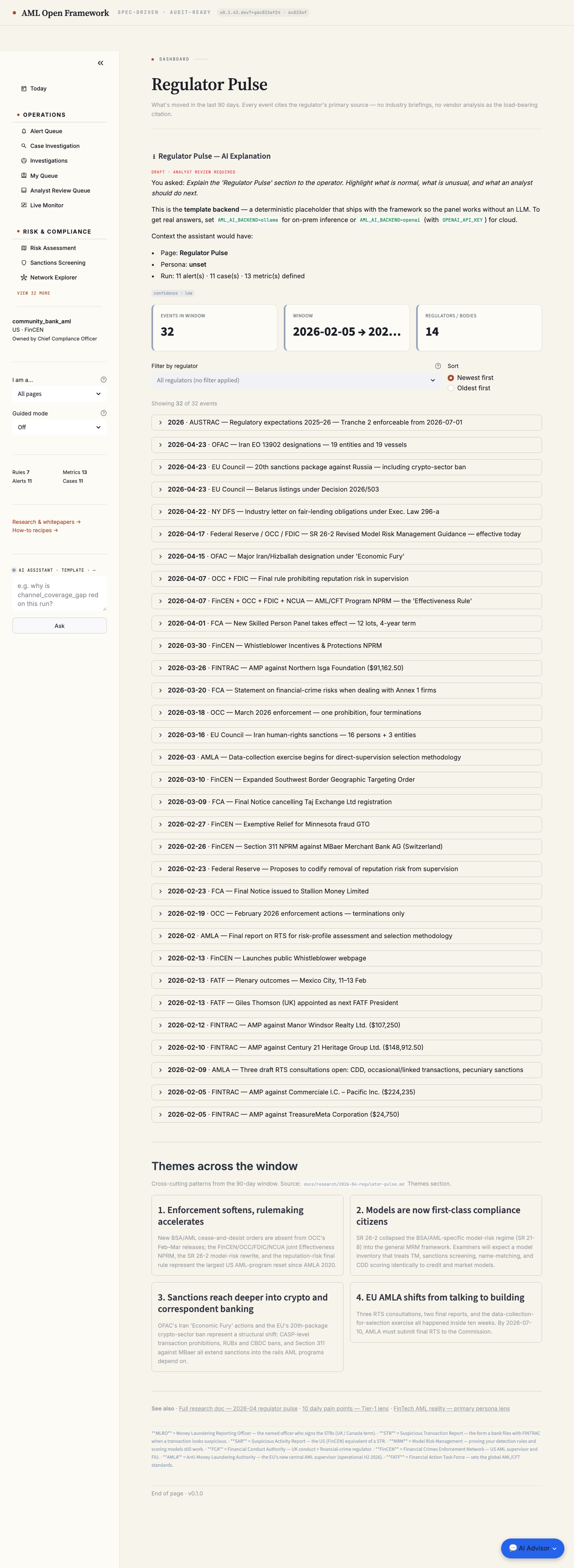

Regulator Pulse¶
What's moved in the last 90 days across FinCEN / OCC / FRB / FCA / EBA / AMLA / FINTRAC / FATF. Filterable by jurisdiction, regulator, severity, and event type. Every event cites the regulator's primary source — no industry briefings, no vendor analysis as the load-bearing citation.
Reference Pages¶

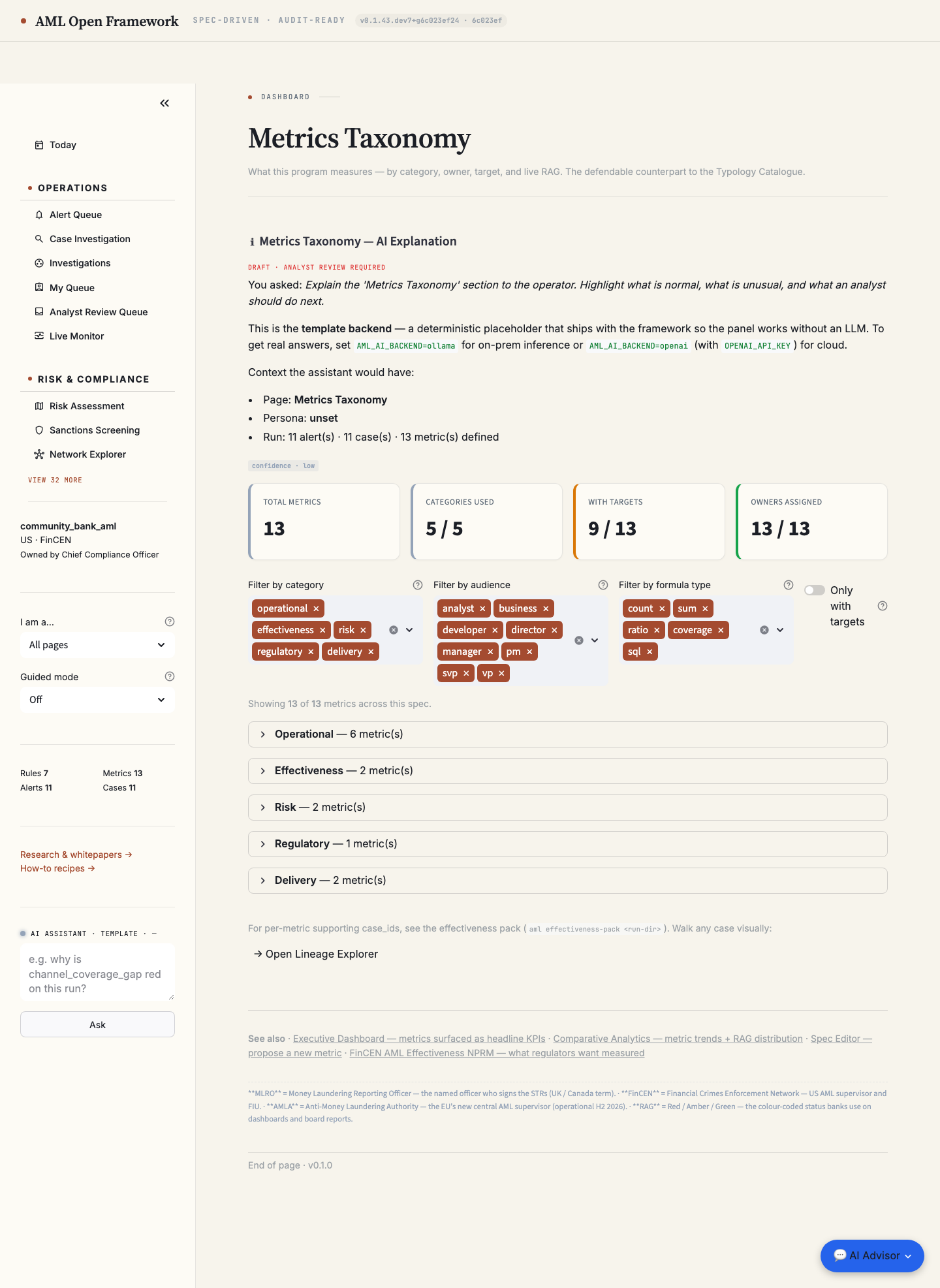

Metrics Taxonomy¶
Browseable catalogue of every metric the spec declares. KPI strip (total / categories used / with-targets / owners assigned), category × audience × formula filters, per-category accordion of metric cards with live RAG accent + current-run value strip, formula-as-YAML expander per metric, see-also footer cross-linking Executive Dashboard / Comparative Analytics / Spec Editor. Sister page to the Typology Catalogue — what the program measures vs what it detects.

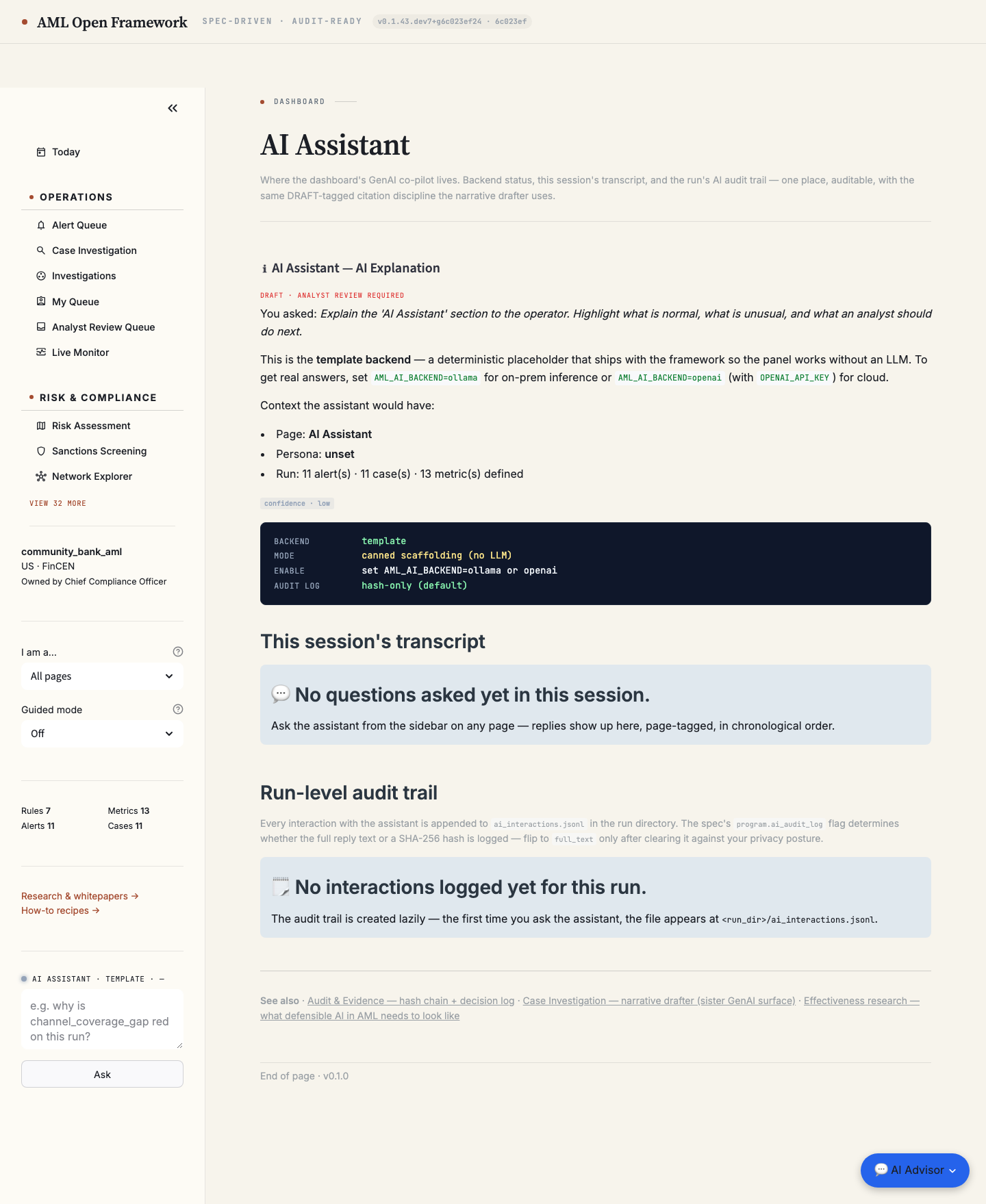

AI Assistant¶
Where the dashboard's GenAI co-pilot lives (PR-K). Three sections: (1) backend status — which provider is configured (template / ollama / openai), is the API key set, what's the spec's program.ai_audit_log mode; (2) this session's transcript — every Q&A from the sidebar panel, page-tagged; (3) run-level audit trail — tail of ai_interactions.jsonl for forensic review. The sidebar panel that appears on every page is for asking; this page is for accountability.

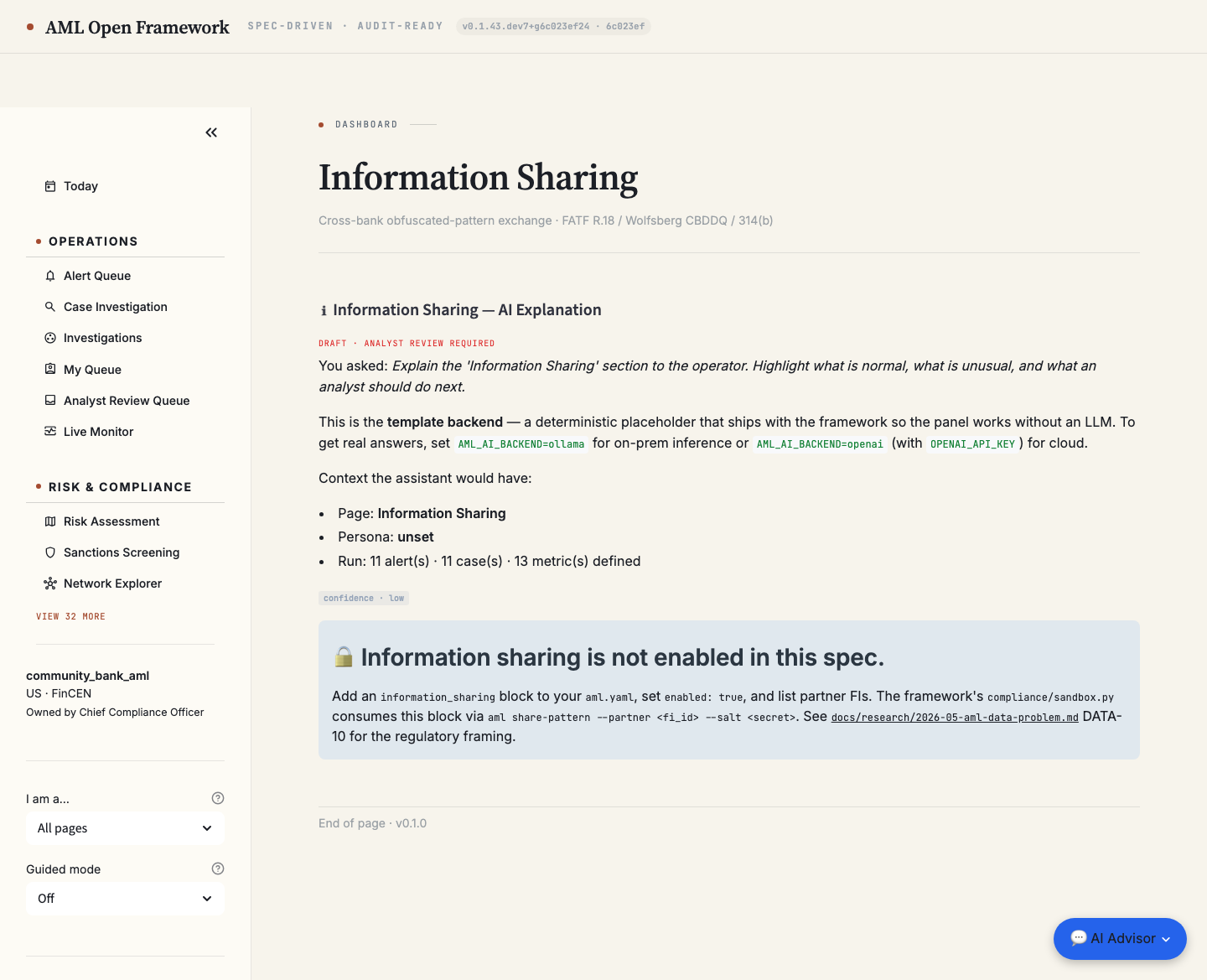

Information Sharing¶
Cross-bank obfuscated-pattern exchange (PR-DATA-10b). Renders the spec's information_sharing block — declared partners, jurisdictions, typology scope, salt-rotation cadence — and the recent aml share-pattern artifacts the institution has published. Read-only operational view; production cross-FI exchange (transport, partner discovery, salt rotation infrastructure) is out of scope. Anchored in FATF Recommendation 18 / Wolfsberg CBDDQ V1.4 / FinCEN 314(b) / AMLA cross-border pilot. Empty-states cleanly when the spec doesn't declare information sharing — no spurious surface for institutions that haven't opted in.
Knowledge → docs site (retired in-app)¶
The in-app Knowledge category (10 pages 33–42) was retired in Round 32 once the MkDocs docs site shipped in Round 31. The same content — Compliance Manifest architecture rationale, the AML/TM data-problem whitepaper, competitive positioning, FinTech AML reality, lineage deep-dive, AML process pain, the narrative regulator-pulse brief, the TD 2024 case study, the board-pack business deck (12 slides + 64s video), the engineer technical deck (18 slides + 92s walkthrough) — now lives at:
- Architecture: https://tomqwu.github.io/aml_open_framework_docs/architecture/
- Research whitepapers (under the
Explainnav):- https://tomqwu.github.io/aml_open_framework_docs/research/2026-05-aml-data-problem/
- https://tomqwu.github.io/aml_open_framework_docs/research/2026-05-regulator-pulse/
- https://tomqwu.github.io/aml_open_framework_docs/research/2026-04-aml-process-pain/
- https://tomqwu.github.io/aml_open_framework_docs/research/2026-04-fintech-aml-reality/
- https://tomqwu.github.io/aml_open_framework_docs/research/2026-04-competitive-positioning/
- https://tomqwu.github.io/aml_open_framework_docs/research/2026-04-regulator-pulse/
- Deck PDFs (preserved doors on the docs repo root):
/business/,/technical/,/v1-archive/
The dashboard sidebar carries two external links (Research & whitepapers · How-to recipes). AML_DOCS_URL env override repoints both for private-mirror deploys. The deck PDF assets continue to ship under docs/pitch/deck-v2/ for download.
Round 27 batch — six universally-routed dashboard surfaces¶

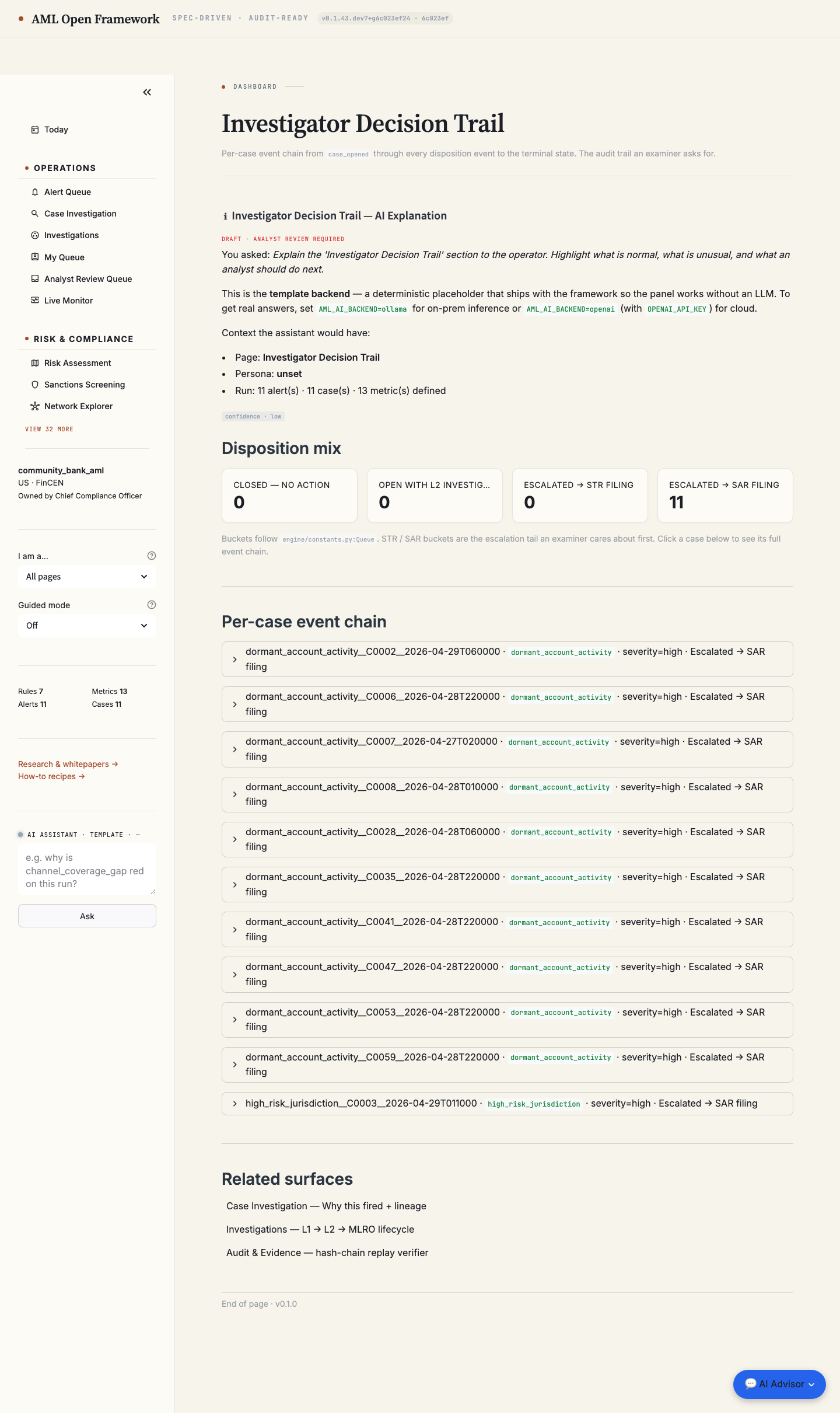

Decision Trail¶
Investigator-facing per-case event chain: case_opened → escalated → STR/SAR filing. Pure read of cached df_cases + df_decisions. Universal-routed via AUDIT_TRAIL_PAGES. PR-F3 (#385).

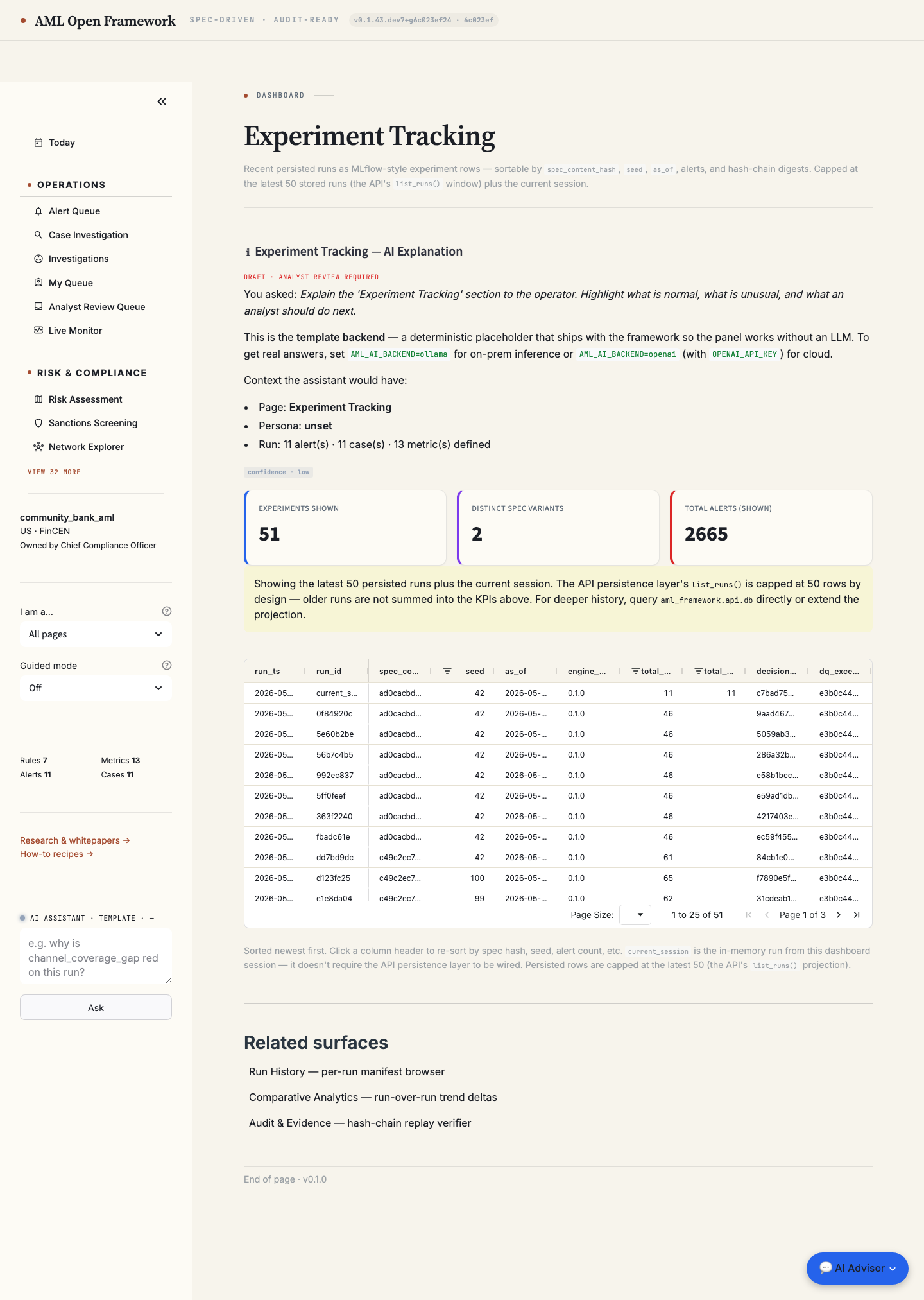

Experiment Tracking¶
MLflow-style overview of every persisted run — spec_content_hash, seed, as_of, total_alerts, total_cases sortable. Universal-routed via TRACKING_PAGES. PR-E4 (#381).

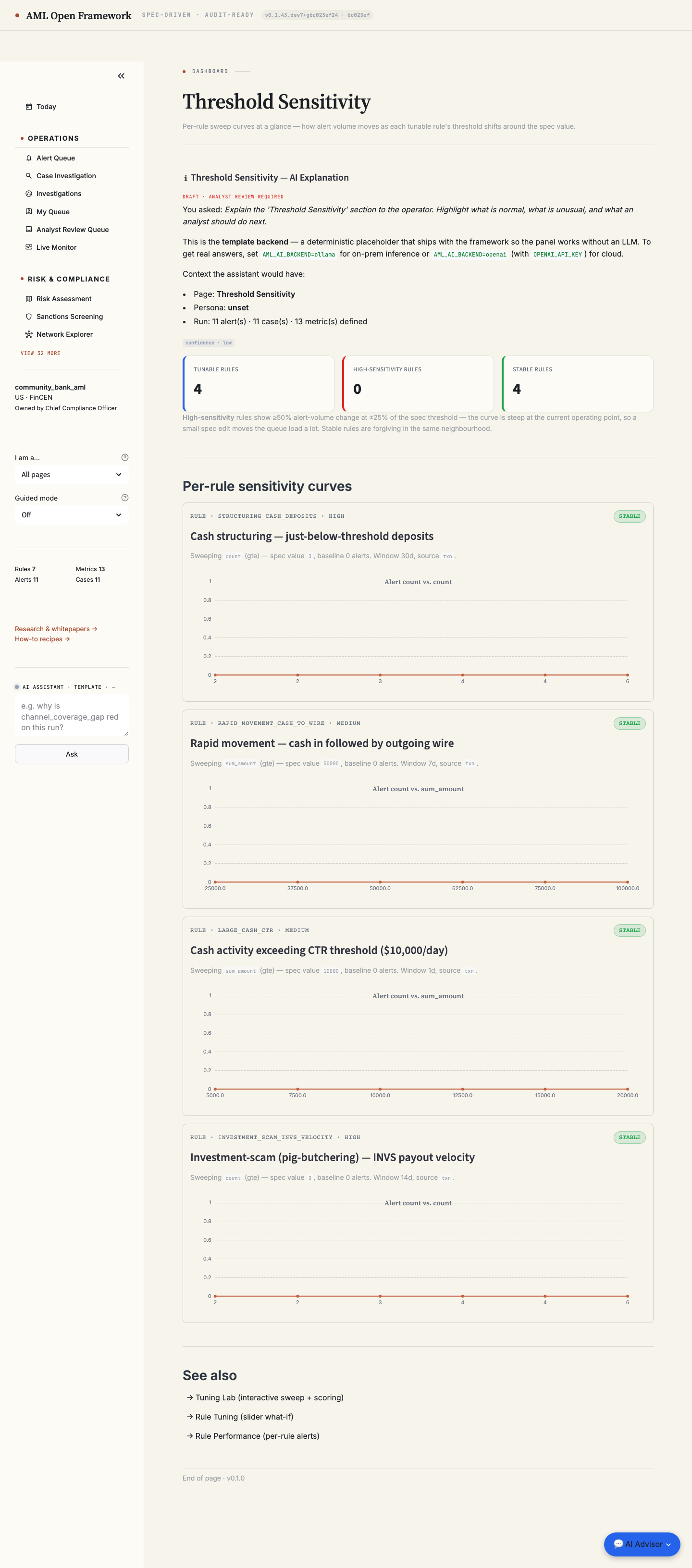

Threshold Sensitivity¶
Per-rule alert-volume curve across {0.5×, 0.75×, 1.0×, 1.25×, 1.5×, 2.0×} the spec threshold — every tunable aggregation_window rule's sensitivity at a glance. Universal-routed via TUNING_PAGES. PR-E2 (#379).

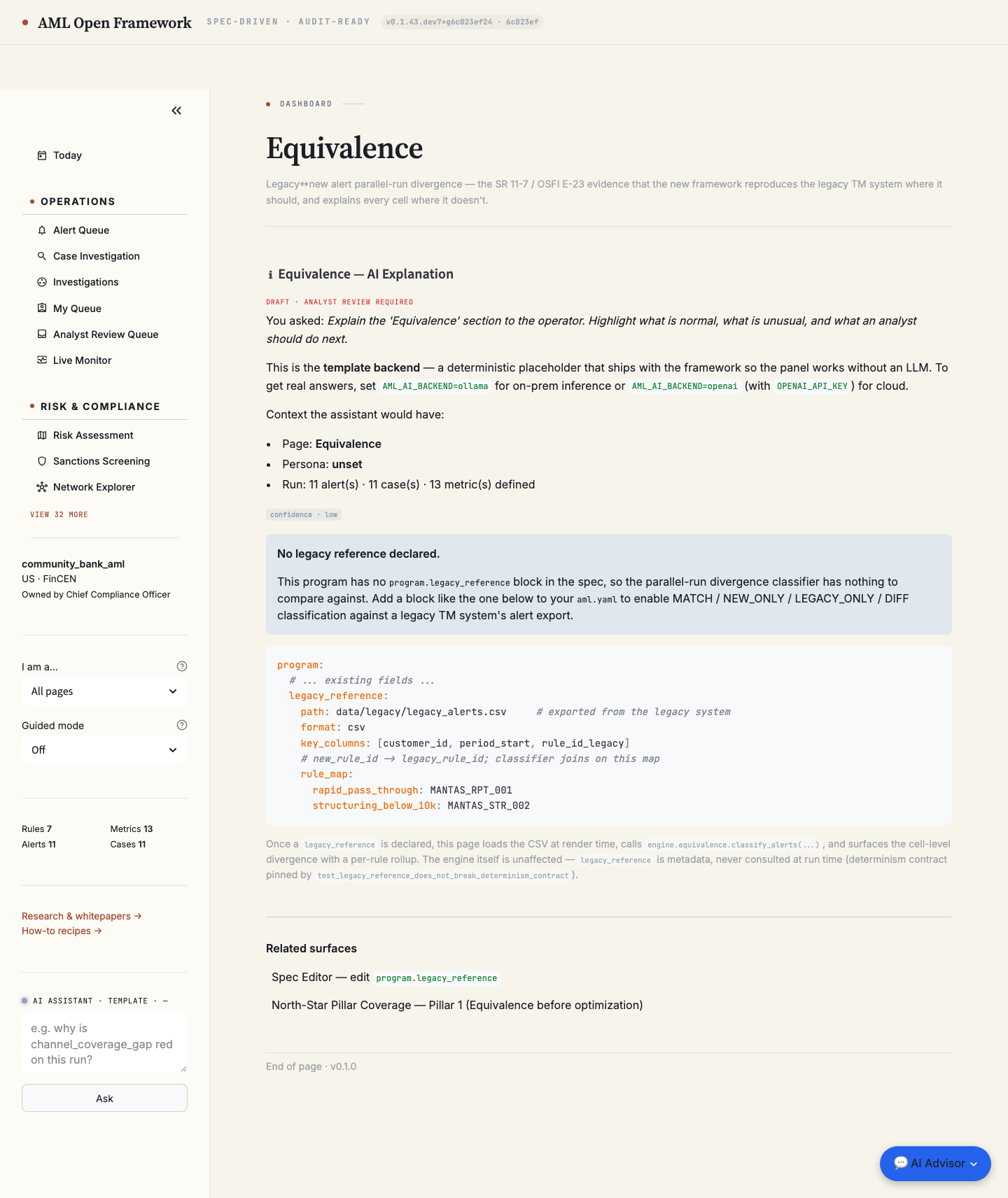

Equivalence¶
Legacy↔new parallel-run divergence: loads the legacy CSV declared in program.legacy_reference and classifies every cell as MATCH / NEW_ONLY / LEGACY_ONLY / DIFF (via engine/equivalence.py shipped in PR-EQ-2). Universal-routed via EQUIVALENCE_PAGES. PR-EQ-3 (closes pillar 1 gap on the north-star page). A Divergence clusters section groups the NEW_ONLY/LEGACY_ONLY cells by shape (rule + severity + window length) with a per-cluster drill-down, so a data scientist triages defects by pattern rather than scrolling the flat cell list.

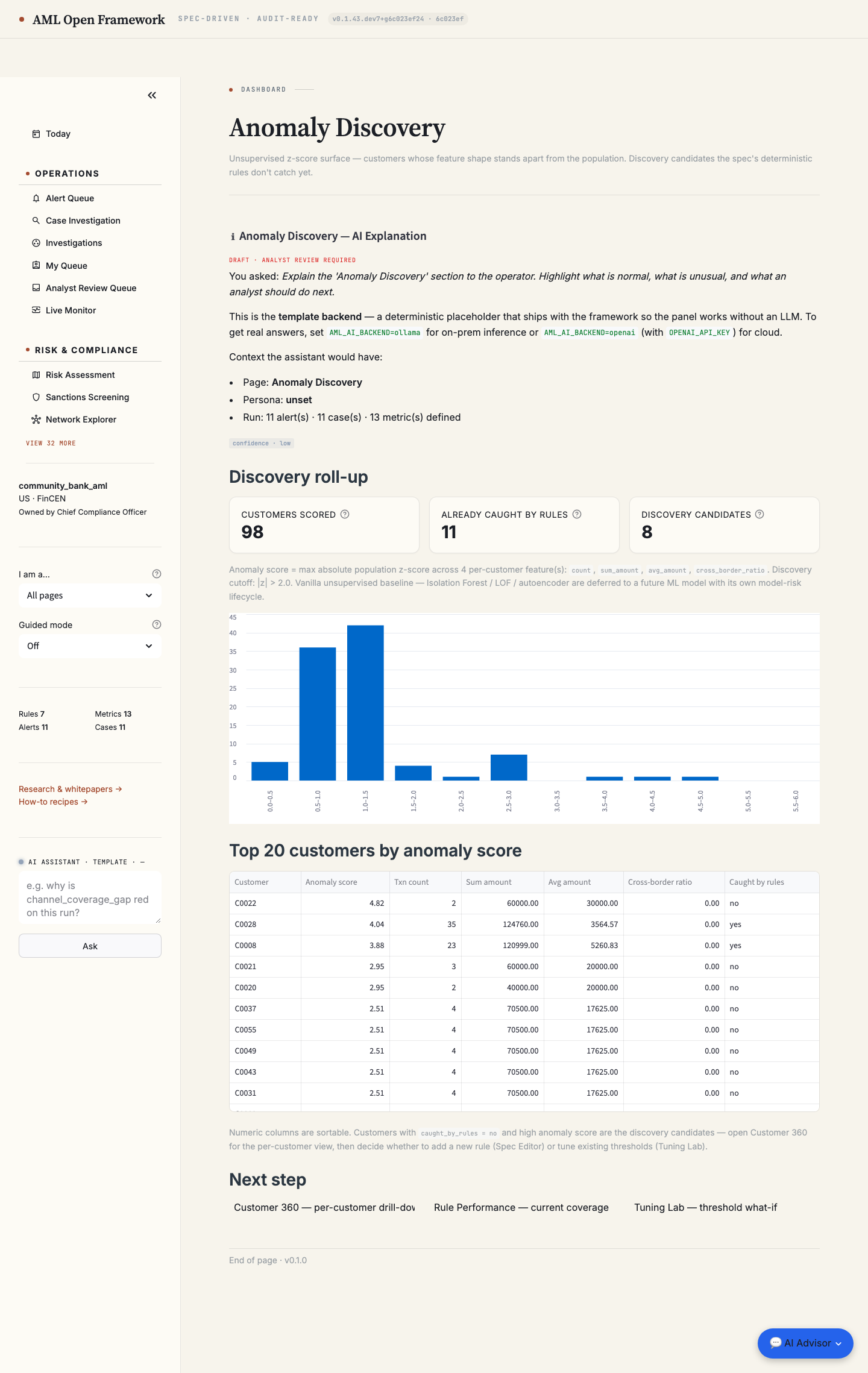

Anomaly Discovery¶
Unsupervised z-score outlier detection on per-customer transaction features. Surfaces customers the spec's deterministic rules don't catch — discovery candidates for new rule typologies. Universal-routed via TUNING_PAGES. PR-E5 (#382). The page points operators to the offline aml discover-typologies <spec> <run-dir> CLI, which clusters these unexplained anomalies into reviewable candidate typologies (candidate_typologies.yaml, status: pending_promotion) — proposals you review and aml typology-import, never auto-promoted (#496).

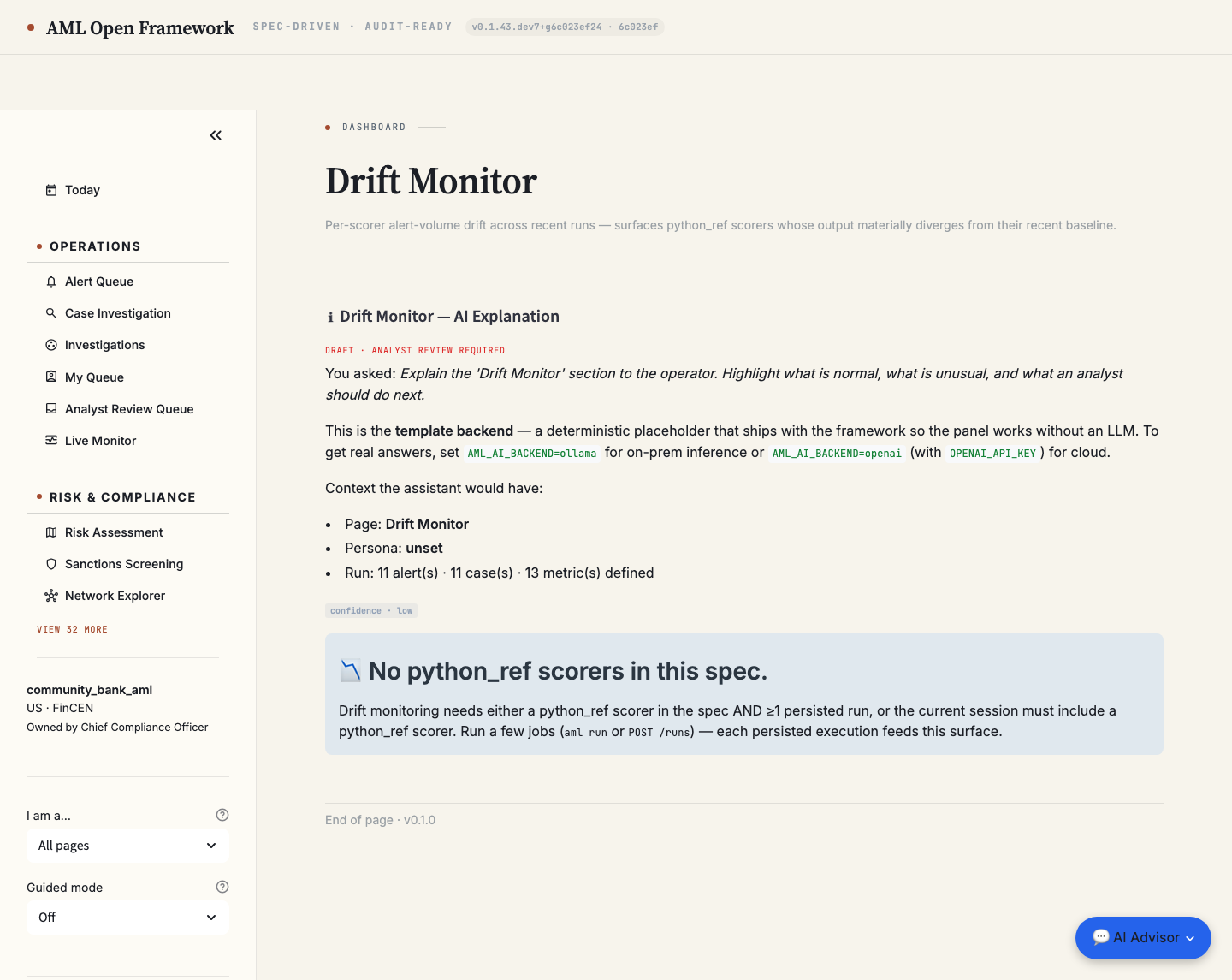

Drift Monitor¶
Per-scorer alert-volume drift across recent runs. Last-run vs median-of-priors with ≥2× / ≤0.5× thresholds flagged as "high drift". Universal-routed via TUNING_PAGES. PR-E3 (#380). When program.model_risk_monitoring is enabled the page also renders a Model-risk report section — the governed model inventory + per-rule count drift (current vs prior run) + validation cadence from the frozen, manifest-pinned model_risk_report.json; advisory/monitoring only (never blocks a run or changes a model). #497.
Export Surface¶
Board PDF Export¶
Generate a board-ready PDF report from the Executive Dashboard with program overview, key metrics (RAG-colored), case summary, and maturity assessment. Uses reportlab for professional formatting.
Audience Filtering¶
The 43 operational pages serve 13 distinct personas. The sidebar Audience selector hides non-relevant pages so each role sees a focused operational workflow (no persona sees more than 9 operational pages); the cross-cutting synthesis surfaces (North-Star Coverage, FP Analysis, Threshold Sensitivity, Anomaly Discovery, Drift Monitor, Rule Lifecycle, Decision Trail, Experiment Tracking, Equivalence, Triage Queue, Regulatory Calendar) stay visible to every persona regardless of the filter:
| Persona | Primary pages |
|---|---|
| SVP | Executive Dashboard → Program Maturity → Framework Alignment → Transformation Roadmap |
| CCO | Executive Dashboard → Program Maturity → Framework Alignment → Risk Assessment → Audit & Evidence → Investigations → Regulator Pulse → Metrics Taxonomy → AI Assistant |
| CTO | Executive Dashboard → Program Maturity → Framework Alignment → Model Performance → Run History → Transformation Roadmap |
| VP / MLRO | Executive Dashboard → Rule Performance → Framework Alignment → Sanctions Screening → Comparative Analytics → Regulator Pulse → Metrics Taxonomy → AI Assistant |
| Director | Executive Dashboard → Alert Queue → Investigations → Risk Assessment → Data Quality → Audit & Evidence → Comparative Analytics → Metrics Taxonomy |
| Operations Manager | Alert Queue → Investigations → My Queue → Analyst Review Queue → Risk Assessment → Live Monitor → Tuning Lab → Typology Catalogue → Metrics Taxonomy |
| L1 Analyst | Alert Queue → Case Investigation → Investigations → Network Explorer → Sanctions Screening → Customer 360 → My Queue → Analyst Review Queue |
| Product Manager | Rule Performance → Program Maturity → Transformation Roadmap → Model Performance → Risk Assessment → Case Investigation → Tuning Lab → Typology Catalogue → Metrics Taxonomy |
| Developer | Spec Editor → Rule Performance → Rule Tuning → Tuning Lab → Model Performance → Data Quality → Analyst Review Queue → Run History → AI Assistant |
| Data Engineer / Head of Data | Data Integration → Data Quality → Customer 360 → Information Sharing → Spec Editor → Run History → Audit & Evidence → AI Assistant |
| Auditor | Audit & Evidence → Investigations → Case Investigation → Data Quality → Framework Alignment → Regulator Pulse → Metrics Taxonomy → AI Assistant |
| Business Owner | Executive Dashboard → Risk Assessment → Framework Alignment → Audit & Evidence |
| FinTech MLRO | FinTech Cockpit → Audit & Evidence → Investigations → Tuning Lab → Regulator Pulse → Spec Editor → Metrics Taxonomy → AI Assistant |
See personas.md for the full role-based workflows.
