Reference Architecture

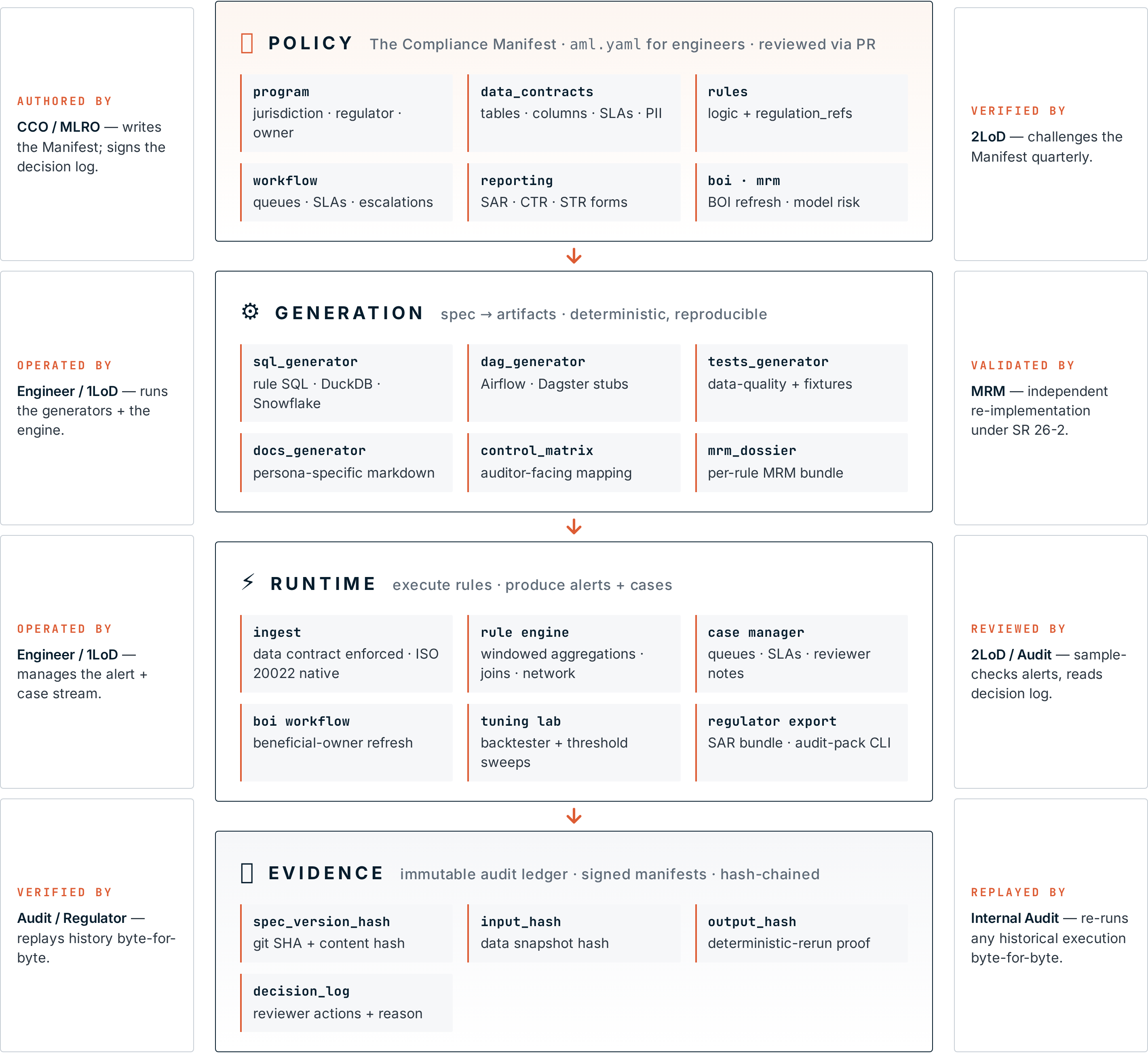

Live interactive version — full design with hover states + body copy at /research/architecture on the demo site. The image above is the canonical diagram; the Mermaid below is the textual spec for accessibility.

Principle

The Compliance Manifest is the source of truth. Policy, data contracts, detection rules, case workflow, and regulator mapping live in one versioned document — the Compliance Manifest (an aml.yaml file, for engineers). Every runtime artifact — SQL, DAGs, data-quality tests, dashboards, alert payloads, audit ledger entries — is generated from the Manifest, never hand-written in parallel. This is what kills the drift that causes AML fines.

Layered view

flowchart TD
    subgraph POLICY["📜 POLICY LAYER · aml.yaml (plain YAML · reviewed via PR)"]
        direction LR
        P1[program metadata<br/>jurisdiction · regulator · owner]
        P2[data_contracts<br/>tables · columns · SLAs · PII]
        P3[rules<br/>logic + regulation citations]
        P4[workflow<br/>queues · SLAs · escalations]
        P5[reporting<br/>SAR · CTR · STR forms]
    end

    subgraph GEN["⚙️ GENERATION LAYER · spec → artifacts (deterministic)"]
        direction LR
        G1[sql_generator<br/>→ rule SQL · DuckDB · Snowflake]
        G2[dag_generator<br/>→ Airflow · Dagster stubs]
        G3[tests_generator<br/>→ data-quality + fixtures]
        G4[docs_generator<br/>→ persona-specific markdown]
        G5[control_matrix<br/>→ auditor-facing mapping]
        G6[mrm_dossier<br/>→ per-rule MRM bundle]
    end

    subgraph RUN["⚡ RUNTIME LAYER · execute rules · produce alerts + cases"]
        direction LR
        R1[ingest<br/>data contract enforced<br/>+ ISO 20022 native]
        R2[rule engine<br/>windowed aggregations · joins · network]
        R3[case manager<br/>queues · SLAs · reviewer notes]
        R4[BOI workflow<br/>beneficial-owner refresh]
        R5[tuning lab<br/>backtester + threshold sweeps]
        R6[regulator export<br/>SAR bundle · audit-pack CLI]
    end

    subgraph EV["🔒 EVIDENCE LAYER · immutable audit ledger · signed manifests"]
        direction LR
        E1[spec_version_hash<br/>git SHA + content hash]
        E2[input_hash<br/>data snapshot hash]
        E3[rule_output_hash<br/>deterministic-rerun proof]
        E4[decision_log<br/>reviewer actions + reason]
    end

    POLICY ==> GEN
    GEN ==> RUN
    RUN ==> EV

    classDef layer fill:#f6f7f9,stroke:#051c2c,stroke-width:2px,color:#051c2c
    classDef item fill:#ffffff,stroke:#c8cfd6,stroke-width:1px,color:#2b3641,font-size:13px
    class POLICY,GEN,RUN,EV layer
    class P1,P2,P3,P4,P5,G1,G2,G3,G4,G5,G6,R1,R2,R3,R4,R5,R6,E1,E2,E3,E4 item

Who reads which layer:

Persona	Layer they author	Layer they verify
CCO / MLRO	Policy (writes the spec)	Evidence (signs decision log)
Engineer / 1LoD	Generation (runs generators)	Runtime (operates engine)
2LoD / MRM	—	Generation + Runtime (challenger model)
Internal Audit / Regulator	—	Evidence (replays history byte-for-byte)

What the spec controls

Concern	Where it lives in the spec	Generated artifact
Data freshness / SLAs	data_contracts[*].freshness_sla	Pipeline sensor + alert
PII classification	data_contracts[*].columns[*].pii	Column masks, access policy
Detection logic	rules[*].logic	SQL query + unit fixture
Regulation traceability	rules[*].regulation_refs	Control matrix row + audit metadata
Reviewer workflow	workflow.queues	Case routing + SLA timers + escalation engine
SAR / CTR reporting	reporting.forms	Regulator export templates + audit-pack CLI
ISO 20022 ingestion	data_contracts[*].iso20022	pacs.008/009/004 + pain.001 validators
Beneficial-owner tracking	boi.refresh_policy	BOI Workflow page + freshness alerts
Model risk management	rules[*].mrm	Per-rule MRM dossier + 4-quarter backtester
Retention	retention_policy	Ledger TTL + export redaction

Data integration

AML's biggest practical pain isn't detection logic — it's getting one clean view across core banking, payment rails, KYC vendors, sanctions screeners, and fraud systems. The whitepaper Data is the AML problem enumerates 11 specific data pains; the framework closes them across four surfaces:

Connectors — data/sources.py ships 9 source loaders out of the box. The same aml.yaml runs against any of them by changing one CLI flag:

Source	Flag	Notes
Synthetic	(default)	Deterministic test data — every demo + CI run uses this
CSV	--data-source csv --data-dir <dir>	One file per data_contracts[*].id
Parquet	--data-source parquet --data-dir <dir>	Same shape, columnar
DuckDB	--data-source duckdb --db-path <file>	One table per contract
Snowflake	--data-source snowflake	Via DuckDB snowflake extension
BigQuery	--data-source bigquery	Via DuckDB bigquery extension
S3	--data-source s3 --data-dir s3://...	CSV/Parquet via httpfs
GCS	--data-source gcs --data-dir gs://...	CSV/Parquet via httpfs
ISO 20022	--data-source iso20022 --data-dir <xml-dir>	pacs.008 / pacs.009 / pacs.004 / pain.001

Contract enforcement — every data_contracts[*] declaration in the spec gates ingestion. aml run --strict refuses to execute when contract checks fail (PR-DATA-1 fail-closed validation). Per-attribute freshness pinning (max_staleness_days + last_refreshed_at_column, PR-DATA-2) closes the "stale beats stale beats stale" DATA-2 pain without per-pipeline plumbing.

ISO 20022 native — data/iso20022/parser.py reads pacs.008 (customer credit transfer), pacs.009 (FI credit transfer), pacs.004 (payment return), and pain.001 (corporate batch initiation). Each parsed row carries msg_kind so downstream rules + the dashboard can filter / count by message type. Closes DATA-8.

Lineage walk-back — every alert carries the source-rule version, spec hash, input-file hashes, and ingestion run id (PR-DATA-4 walk_lineage()). The Audit & Evidence page renders the chain; aml export --include-lineage packages it for the auditor. Closes DATA-4.

For the operator-facing summary surface — "what data is flowing through this AML program right now?" — see the Data Integration dashboard page (page 30). It lays out the 9 connectors, contract roll-up in whitepaper vocabulary (completeness / staleness / checks), ISO 20022 message-type counts, and a DATA-N → artifact map that lets a data engineer verify each whitepaper claim against the concrete framework artifact that closes it.

Tier-1 deployment targets

The framework is deployment-agnostic — same artefacts, different glue per cloud:

Tier	Target	Glue
On-prem	Bare K8s + Postgres + S3-compatible store	Helm chart in deploy/helm/; JWT_SECRET + DATABASE_URL from K8s Secrets
Microsoft Azure	AKS + Azure Database for PostgreSQL + Blob/ADLS Gen2 + Key Vault + Entra ID	Same Helm chart with azure: block populated. Workload identity = no static secrets. Round 15 (PRs #251–#254)
AWS (community-supported)	EKS + RDS + S3 + Secrets Manager + IAM	Same chart; azure: block stays empty. S3 source already shipped
Google Cloud (community-supported)	GKE + Cloud SQL + GCS + Secret Manager + IAP	Same chart; GCS source already shipped
Snowflake / BigQuery	Either as a data plane behind any of the above	DuckDB extensions; no warehouse-specific deploy code

The Round-12 lineage chain (walk_lineage(case_id)) is data-source- agnostic — source_path reflects whichever URI the data was loaded from (abfss://..., s3://..., data/input/txn.csv, etc.).

Determinism & reproducibility

Every rule execution records:

1. spec_version — git SHA of aml.yaml plus a content hash.
2. input_hash — hash of the ordered input rows used (or snapshot id).
3. output_hash — hash of the alert set.
4. engine_version — version of this framework.

An auditor can re-run any historical execution and verify the output hash matches. If it doesn't, the chain of custody is broken and the run is flagged.

Why not a rules engine in application code?

A pure Python/Java rules engine lets any developer tweak detection logic in a Monday-morning hotfix, and the CCO only hears about it three audits later. Declarative specs with PR-based review force a control point: policy changes go through compliance sign-off before they change pipeline behaviour. The same argument is why Terraform, dbt, and Kubernetes manifests won — spec > code for regulated change.

Extensibility

Two escape hatches, by design:

• custom_sql on a rule lets an engineer drop in handwritten SQL when the declarative logic primitives aren't expressive enough. The spec still carries the regulation citation, severity, workflow, and evidence list, so the audit trail survives.
• python_ref on a rule points at a Python callable (e.g. an ML scorer) that returns an alert set. The spec captures the model id and version so model risk management can validate it.

Both escape hatches mean some generation properties weaken (e.g. the control matrix can't auto-extract thresholds), but the policy layer is preserved.

What this framework is not

• Not a replacement for a core banking system or transaction store. It reads from whatever warehouse you have.
• Not a certified detection model catalogue. Rules in the examples are illustrative starting points, not validated typologies.
• Not a SAR filing service. It produces a well-formed bundle; the regulatory submission step is institution-specific.

See personas.md for the role-by-role interaction model and regulator-mapping.md for regime-specific notes.
